Front Axle Camber, Centering

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi S5, 2022 Audi A5 Quattro, 2021 Audi S5, 2021 Audi A5 Quattro, and 2020 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

Camber cannot be adjusted.

Camber can be centered evenly within specified tolerance range by shifting subframe.

Procedure

-- Remove the noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING .

-- Remove the left and right wheel spoilers. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

CAUTION:

There is a risk of damaging the threads on the subframe threaded connection to the body.

  • The subframe bolts on the body must not be loosened or tightened with an impact wrench.
  • Always install all bolts by hand for the first few turns.

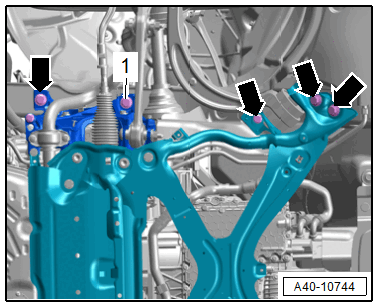

-- Remove the left and right bolts -1 and arrows- for the subframe one after the other and replace.

GWWA40-10744Courtesy of AUDI OF AMERICA, LLC

-- Install the new bolts all the way by hand.

NOTE:

If the subframe is moved, the front of the vehicle must be lifted at the jack points using an axle lift.

-- Move the subframe with a plastic-coated pry bar into the corresponding position in direction of -arrow-.

Fig 1: Push In Center Of Subframe Near Lower Control Arm Between Subframe And Body Longitudinal Member
GWWA44-10174Courtesy of AUDI OF AMERICA, LLC

-- To do so place the pry bar in the center of the subframe near the control arm between the subframe and the body longitudinal member.

NOTE:

If no plastic-coated pry bar is available, wrap a conventional pry bar with adhesive tape.

-- The vehicle must be bounced several times at the front axle before checking the camber values.

WARNING:

Risk of accident!

  • Replace the subframe bolts one after the other.

-- Tighten the left and right subframe bolts diagonally in stages, and check the camber value again. Refer to AXLE ALIGNMENT SPECIFIED VALUES, SEDAN / AVANT .

CAUTION:

There is a risk of adjustment errors.

  • All axle alignment values must be checked after every camber correction.

Tightening Specifications
