Overview - Turbocharger, Part I

WARNING: This page is about a different car, the 2024 Audi Q3 and 2023 Audi Q3. However, it is still accessible from the selected car via links, so may be relevant.

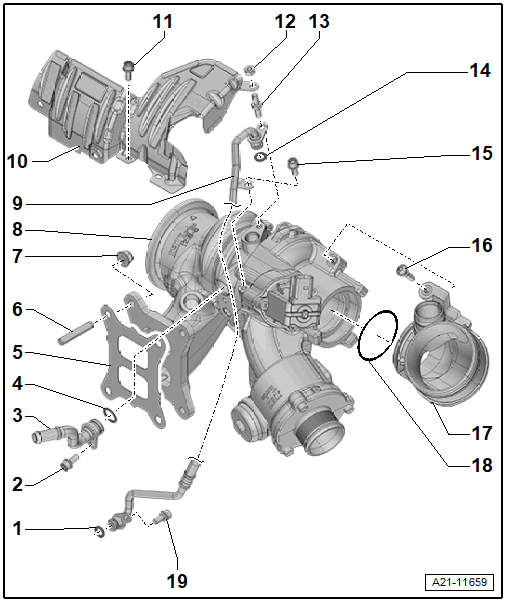

Fig 1: Overview - Turbocharger
GWWA21-11659Courtesy of AUDI
  1. O-Ring
    • Always replace after removing
    • coat with engine oil
  2. Bolt
    • 9 Nm
  3. Coolant Supply Line
  4. O-Ring
    • Always replace after removing
    • Coat with coolant
  5. Seal
    • Always replace after removing
  6. Threaded Pin
    • 16 Nm
  7. Nut
    • Always replace after removing
    • 25 Nm
  8. Turbocharger
  9. Oil Supply Line
  10. Heat Shield
    • There are different versions. Refer to the appropriate Electronic Parts Information for the allocation.
  11. Bolt
    • 9 Nm
  12. Nut
    • 9 Nm
  13. Bolt
    • 9 Nm
  14. O-Ring
    • Always replace after removing
    • coat with engine oil
  15. Bolt
    • 9 Nm
  16. Bolt
    • 9 Nm
  17. Connection
  18. O-Ring
    • Always replace after removing
  19. Bolt
    • 9 Nm
