Special tools and workshop equipment required

Locking Pin Driver:30-505
Bearing Installer - Clutch Housing/Gearbox Bearing:VW554
Bushing Installer - Rear Axle Beam:3128
Rear Bushing Tool - Press Piece:T40033/1
Assembly Tool Kit - Traverse:T10030/5
Bearing Installer - Component:3346/2
Bearing Installer - Control Arm - Nut:3346/3

Courtesy of AUDI

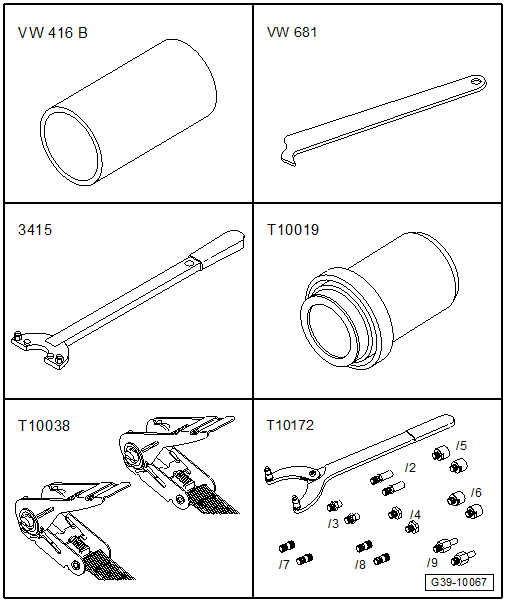

Special tools and workshop equipment required

Press Piece - 37mm:VW416B
Puller - Seal Lever:VW681
Counterhold - Crankshaft Sprocket:3415
Seal Installer - Shaft Seal Ring:T10019
Tensioning Strap:T10038
Counterhold - Kit - Multiple Use:T10172A with Counterhold - Kit - Adapter 5:T10172/5

Special tools and workshop equipment required

Used Oil Collection and Extraction Unit:SMN372500

Fig 2: Identifying Used Oil Collection and Extraction Unit
Courtesy of AUDI
Multipoint Socket:T10035

Fig 3: Multipoint Socket T10035
Courtesy of AUDI
Seal Installer - Flange Shaft:T10049

Courtesy of AUDI
Guide Pins:T10093

Fig 4: Guide Pins T10093
Courtesy of AUDI
Counterhold - Kit - Multiple Use:T10172A with Counterhold - Kit - Adapter 5:T10172/5

Fig 5: Counterhold - Kit - Multiple Use T10172 With Camshaft Lock T10172/11
Courtesy of AUDI
Tensioner:T40296

Courtesy of AUDI
Torque Wrench 1601:VAG1601

Courtesy of AUDI
Shop Crane - Drip Tray:VAS6208

Fig 6: Identifying Drip Tray
Courtesy of AUDI
Charging Device For All wheel drive Coupling 2:VAS6291A

Fig 7: Charging Device F/Haldex 2 Coup. VAS 6291
Courtesy of AUDI
Engine and Gearbox Jack:VAS6931

Fig 8: Engine and Gearbox Jack VAS6931
Courtesy of AUDI
Slide Hammer Set:VW771

Fig 9: Identifying Slide Hammer Set
Courtesy of AUDI
Puller - Kukko 3 Jaw - 100x100mm:12/1

Courtesy of AUDI
-1- Puller - Kukko Internal - 12-16mm:21/1
-2- bridge from Puller - Kukko Puller - 50-110mm Width, 150mm Length:18/0
-4- Puller - Kukko Counterstay:22/1

Fig 10: Identifying Kukko Puller
Courtesy of AUDI
Transmission Support - Bolt:3282/34

Fig 11: Transmission Support - Bolt 3282/34
Courtesy of AUDI
Subframe Bushing Tool Kit:3301 and Subframe Bushing Tool Kit - Thrust Piece:3301/2

Fig 12: Subframe Bushing Tool Kit
Courtesy of AUDI
Bearing Installer - Component:3346/2 and Control Arm Bearing Installer - Nut:3346/3

Courtesy of AUDI
Not Illustrated:
Bit XZN 14:T40312
