Left Seal, Replacing

WARNING: This page is about a different car, the 2024 Audi Q3 and 2023 Audi Q3. However, it is still accessible from the selected car via links, so may be relevant.

Removing and Installing the Left Flange Shaft and the Left Flange Shaft Seals on the Rear Final Drive.

Special tools and workshop equipment required

Puller - Seal Lever:VW681
Slide Hammer Set:VW771
Transmission Support - Bolt:3282/34
Seal Installer - Flange Shaft:T10049
-2- bridge from Puller - Kukko Puller - 50-110mm Width, 150mm Length:18/0
Sealing Grease:G 052 128 A1

Procedure

-- With the rear final drive installed remove the left drive axle. Refer to DRIVE AXLE, REMOVING AND INSTALLING .

-- Remove the spindles from the :18/0 bridge and install the :3282/34 in place of them.

Courtesy of AUDI

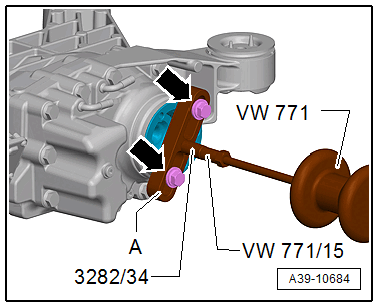

-- Attach the bridge -A- with two M8 x 30 bolts -arrows- to the flange shaft.

-- Remove the flange shaft.

-- Pry off the flange shaft seal with the :VW681 .

Fig 1: Identifying Flange Shaft Seal Pried Off With An Extractor Lever VW 681

Courtesy of AUDI

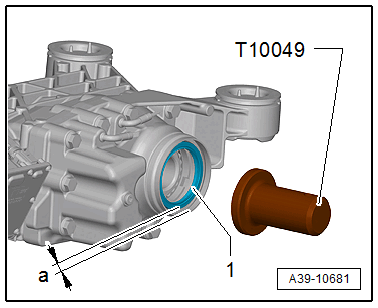

-- Lightly lubricate the outer diameter of the new gasket -1- and using the :T10049 drive in to the dimension -a- while doing so do not bend the gasket.

Courtesy of AUDI

Vehicles with Final Drive 0CQ and 0CR

Dimension -a- = 4.8 ± 0.1 mm; Measured from the housing flat surface to seal.
Do not drive in the gasket all the way.
Maintain a parallel alignment of a maximum 0.25 mm between the seal -1- to the housing flat surface.

Vehicles with Final Drive 0BR

Install the gasket all the way.

Continuation for All Vehicles

-- Fill the space between the sealing/dust lip halfway with Sealing Grease:G 052 128 A1 .

-- Replace the flange shaft circlip. Refer to Figure.

-- Install the flange shaft using a plastic mallet and if necessary a drift.

-- Install the drive axle. Refer to DRIVE AXLE, REMOVING AND INSTALLING .

-- Check the gear oil level in the rear final drive. Refer to GEAR OIL .
