Balance Weight

WARNING: This page is about a different car, the 2024 Audi Q3 and 2023 Audi Q3. However, it is still accessible from the selected car via links, so may be relevant.

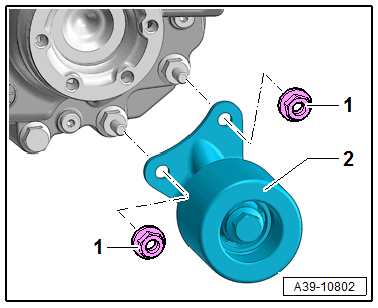

Fig 1: Exploded View Of Final Drive Balance Weight
GWWA39-10802Courtesy of AUDI
  1. Nut
    • 25 Nm
  2. Balance Weight
    • Installed depending on the version
