Driveshaft, Removing And Installing, Driveshaft Connected On Transmission Side: Installing

Install in reverse order of removal with note to the following:

• Install all marked parts in their original position.

-- Check the heat shield -4- for the shaft seal on the bevel box for damage and if necessary replace.

Courtesy of AUDI

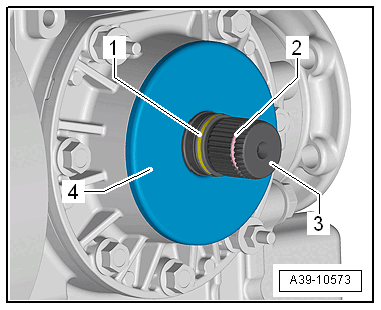

• Always replace the O-ring -1- and circlip -2- on the output shaft -3-. Refer to Figure.
• Lubricate the splines on the output shaft with Grease for Clutch Plate Shaft Splines:G 000 100  .

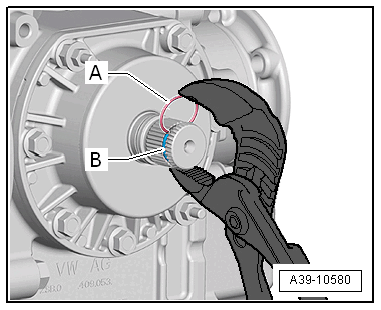

-- Remove the eye from the :T40296  .

Courtesy of AUDI

-- Place the driveshaft on the drive axle splines on the bevel box.

Courtesy of AUDI

-- Place the rear section of the driveshaft on the :VAS6931  and on a wooden block.

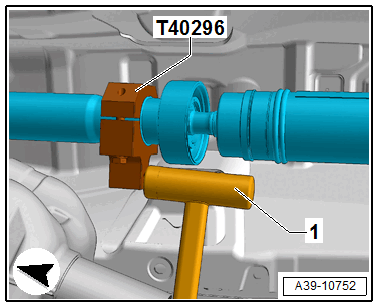

-- Using a plastic mallet -1-, hit on the :T40296  until the driveshaft locks into place on the output shaft.

• The driveshaft must stop at the bevel box and must not be able to be removed by hand from the bevel box.

-- Remove the :T40296  .

-- Lift the driveshaft with the :VAS6931  .

Fig 1: Locating Center Bracket Screws

Courtesy of AUDI

-- Install the bolts -arrows- for the intermediate bearing but do not tighten them.

Fig 2: Identifying Driveshaft Flange Shaft Seal

Courtesy of AUDI

-- Attach to the driveshaft to the rear final drive making sure the marks -arrows- are lined up.

Fig 3: Aligning Markings On Driveshaft At Flange Of Haldex Clutch

Courtesy of AUDI

-- Tighten the driveshaft bolts to the rear final drive.

-- Tighten the bolts -2 and 3- for the pendulum support.

Fig 4: Engine Support Component Location

Courtesy of AUDI

-- Align the intermediate bearing without tension and tighten the bolts -arrows-.
