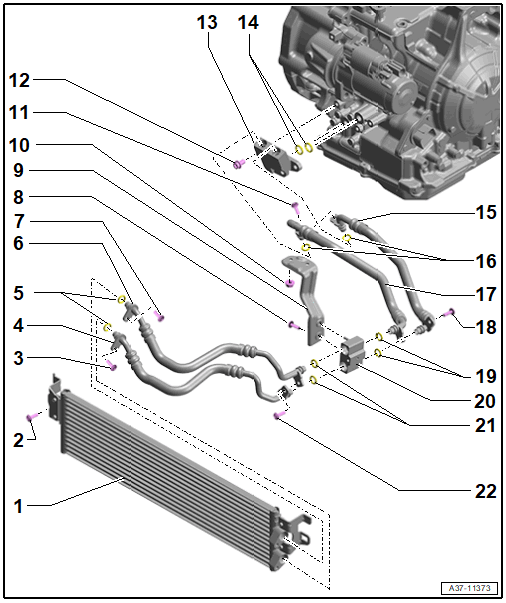

Overview - ATF Circuit
WARNING: This page is about a different car, the 2024 Audi Q3 and 2023 Audi Q3. However, it is still accessible from the selected car via links, so may be relevant.
- ATF Cooler
- Removing and Installing. Refer to ATF COOLER, REMOVING AND INSTALLING .
- Bolt
- 4.5 Nm
- Bolt
- 8 Nm
- ATF Line
- From the adapter to the ATF cooler
- Removing and Installing. Refer to ATF LINES, REMOVING AND INSTALLING .
- O-Rings
- Replace after removing
- ATF Line
- From the adapter to the ATF cooler
- Removing and Installing. Refer to ATF LINES, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Bolt
- 20 Nm
- Bracket
- Nut
- 8 Nm
- Bolt
- 8 Nm
- Bolt
- 20 Nm
- Thermostat
- Removing and Installing. Refer to THERMOSTAT, REMOVING AND INSTALLING .
- O-Rings
- Replace after removing
- ATF Line
- From the thermostat to the adapter
- Removing and Installing. Refer to ATF LINES, REMOVING AND INSTALLING .
- O-Rings
- Replace after removing
- ATF Line
- From the thermostat to the adapter
- Removing and Installing. Refer to ATF LINES, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- O-Rings
- Replace after removing
- Adapter
- O-Rings
- Replace after removing
- Bolt
- 8 Nm
