OVERVIEW - Battery, 48 V -A6-, 0K4

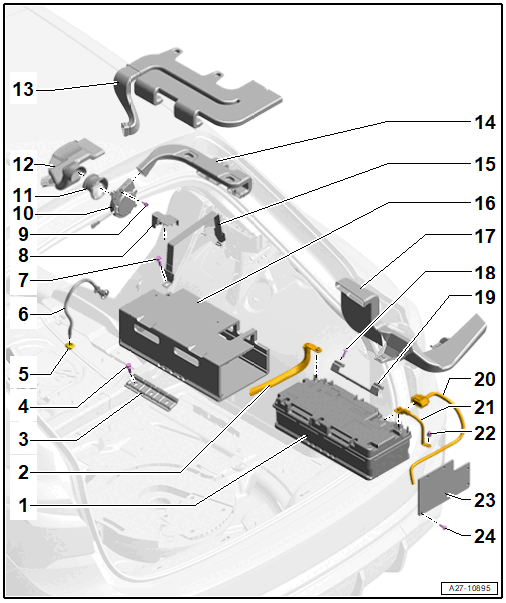

Fig 1: Exploded View Of Battery, 48 V -A6-, 0K4

Courtesy of AUDI OF AMERICA, LLC

Battery, 48 V -A6-
- Removing and Installing. Refer to Battery, 48 V -A6-, REMOVING AND INSTALLING, 0K4 .
Positive Cable
- 20 Nm
Retaining Bracket
- For the protective housing
Bolt
- Quantity: 2
- 20 Nm
Grommet
Pressure Balance Hose
Bolt
- 20 Nm
Positive Cable Cap
Rubber Bushing
- Quantity: 2
Battery Fan 1 -V457-
- Removing and Installing. Refer to Battery Fan 1 -V457-, REMOVING AND INSTALLING, 0K4 .
Connection
- For the fresh air door
Front Air Duct
- For the fresh air to the battery fan
Left Air Duct
- Exhaust from voltage converter and from the battery
Right Air Duct Channel
- For the fresh air to the battery
Securing Strap
- For securing the battery
Protective Housing
- Removing and Installing. Refer to PROTECTIVE HOUSING FOR Battery, 48 V -A6-, REMOVING AND INSTALLING .
Right Air Duct Channel
- For exhaust to the left air duct
Bolt
- Quantity: 2
- 10 Nm
Retaining Bracket
- For the Battery, 48 V -A6-
Connector
Ground Wire
- De-energizing. Refer to 48V SYSTEM, DE-ENERGIZING .
- 20 Nm
Nut
- 9 Nm
Cover Plate
Bolt
- Quantity: 5
- 8 Nm
