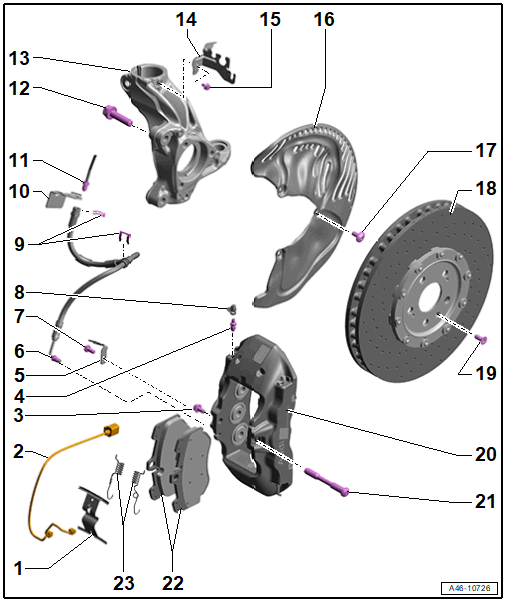

Overview - Six-Piston Ceramic Brake
- Brake Pad Spring
- Note the installation position. Refer to Installing - Note the installation position of the brake pad spring: .
- Brake Pad Wear Indicator Wire
- Replace when replacing the pads
- Refer to BRAKE PAD WEAR INDICATOR WIRE, REMOVING AND INSTALLING, SIX-PISTON CERAMIC BRAKE
- Bolt
- 25 Nm
- Bleed Screw
- 18 Nm
- Bracket
- For brake hose
- Brake Hose
- Tightening specification: brake hose to brake caliper, 14 Nm
- Replace if damaged
- Make sure the brake hose is routed correctly. Make sure the brake hose is not pinched, bent, twisted or rubbing against the vehicle.
- Make sure that tabs are properly seated in the grooves on the bracket.
- Bolt
- 25 Nm
- Protective Cap
- Springs
- Replace if damaged
- Bracket
- For the brake line/hose
- Brake Line
- With standard tool: 14 Nm
- With special tool. Refer to Figure 12 Nm
- Do not change the bending shape.
- Replace a damaged or bent brake line
- Bolt
- 200 Nm
- Wheel Bearing Housing
- Bracket
- For brake hose
- Bolt
- 8 Nm
- Brake Shield
- Bolt
- 12 Nm
- Brake Rotor
- Always replace on both axles, at the same time the brake pads must also be replaced
- Allocation. Refer to the Parts Information.
- Refer to CERAMIC BRAKE ROTOR, DETERMINING WEAR
- Refer to CERAMIC BRAKE ROTOR, DETERMINING WEAR USING Carbon-Ceramic Brake Wear Tester
- Additionally check for:
- Refer to CRACKS IN CERAMIC BRAKE ROTOR CONNECTION AREA
- Refer to CHAMFER
- Refer to NICKS ON CERAMIC BRAKE ROTOR
- Refer to CRACK IN COOLING CHANNEL
- Do not use excessive force to separate the brake rotor from the wheel hub. Use rust remover, if necessary, otherwise the brake rotor could be damaged.
- Refer to BRAKE ROTOR, REMOVING AND INSTALLING, CERAMIC BRAKES
- Bolt
- 4.5 Nm
- Brake Caliper
- Allocation. Refer to the Parts Information.
- Do not disconnect the brake hose when replacing a brake pad
- Refer to BRAKE CALIPER, REMOVING AND INSTALLING, SIX-PISTON CERAMIC BRAKE
- Refer to BRAKE CALIPER PISTON, REMOVING AND INSTALLING, SIX-PISTON BRAKE
- Brake Pad Pin
- Replace when replacing the pads
- Brake Pads
- Always replace on both axles.
- Allocation. Refer to the Parts Information.
- Check the pad thickness. For the wear limit. Refer to BRAKE PADS, CHECKING THICKNESS
- Refer to BRAKE PADS, REMOVING AND INSTALLING, SIX-PISTON CERAMIC BRAKE
- Inner right brake pad with brake pad wear sensor
- Balance Springs

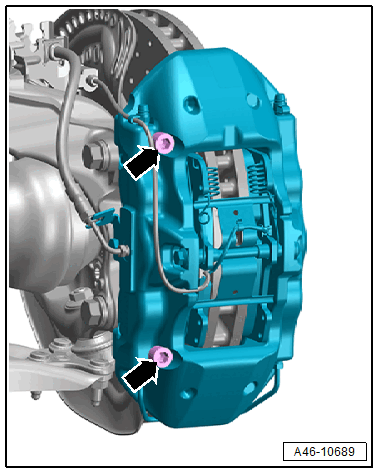

Do Not Loosen the Threaded Connections arrows on the Brake Caliper
CAUTION:
Improper handling increases the risk of destroying the brake caliper.
- Never loosen the bolts -arrows- and guide pins at the break caliper.
