Overview - Electric Vacuum Pump

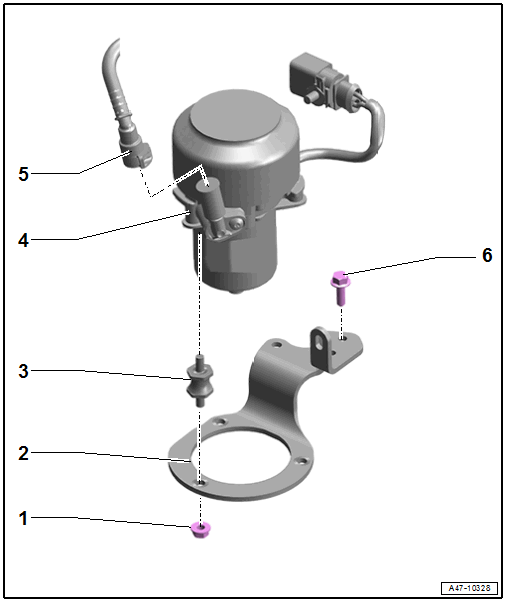

Fig 1: Exploded View Of Electric Vacuum Pump

Courtesy of AUDI OF AMERICA, LLC

Nut
- 8 Nm
- Quantity: 3
Bracket
Bonded Rubber Bushing
- 8 Nm
- Quantity: 3
Brake System Vacuum Pump -V192-
- Only specific vehicles with 1.4L and 1.5L TFSI engine and vacuum brake booster. Refer to the Parts Information for the allocation.
- Component location: in the engine compartment above the engine/transmission separating point.
- Do not disassemble
- Check in "Guided Fault Finding" using the Vehicle Diagnostic Tester.
- Removing and Installing. Refer to ELECTRIC VACUUM PUMP, REMOVING AND INSTALLING .
Vacuum Line
- With brake booster pressure sensor
- Allocation. Refer to the Parts Information.
Bolt
- 8 Nm
- Quantity: 2
