Overview - Rear Wheel Housing Liner

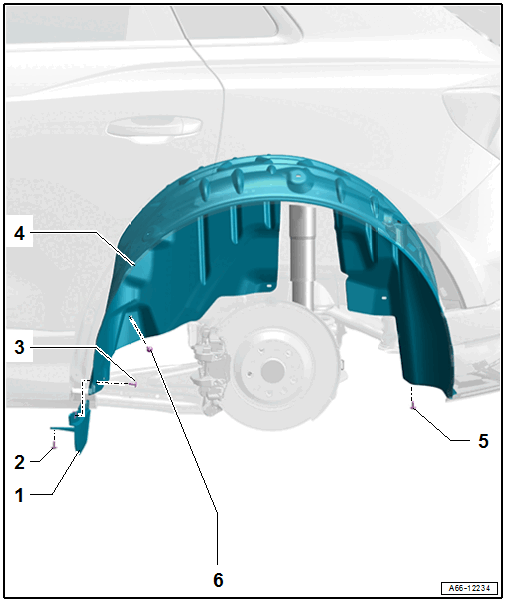

Fig 1: Exploded View Of Rear Wheel Housing Liner
GWWA66-12234Courtesy of AUDI OF AMERICA, LLC
  1. Wheel Spoiler
    • Rear
  2. Bolt
    • 2 Nm
  3. Bolt
    • 1.8 Nm
  4. Wheel Housing Liner
    • Rear
  5. Bolt
    • Quantity: 3
    • 2 Nm
  6. Bolt
    • Quantity: 10
    • 1.8 Nm
