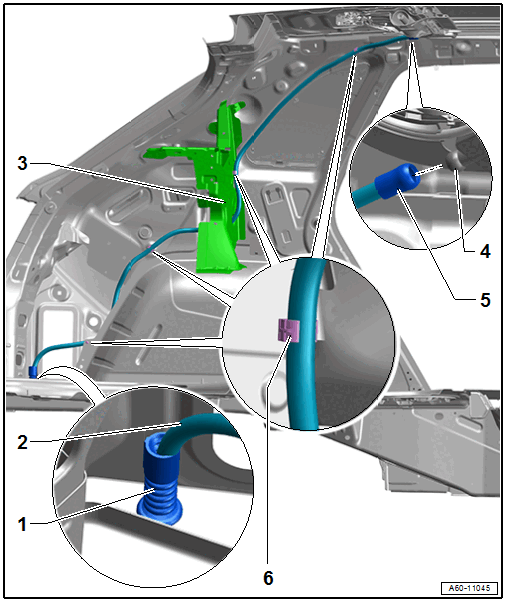

Overview - Rear Water Drain Hoses, Q3

Courtesy of AUDI OF AMERICA, LLC

Grommet
- Push all the way into the body using a soap solution
Water Drain Hose
- Rear
- Cleaning. Refer to WATER DRAIN HOSES, CLEANING .
- Removing and Installing. Refer to REAR WATER DRAIN HOSES, REMOVING AND INSTALLING, Q3, Q3 SPORTBACK .
- Pay attention to the markings on the upper clip and on the grommet
Body Reinforcements
- Guide the water drain hose through the body reinforcements
Connection
- On the sunroof frame
Coupling Piece
- Attach to the connection
Clip
- For the water drain hose
