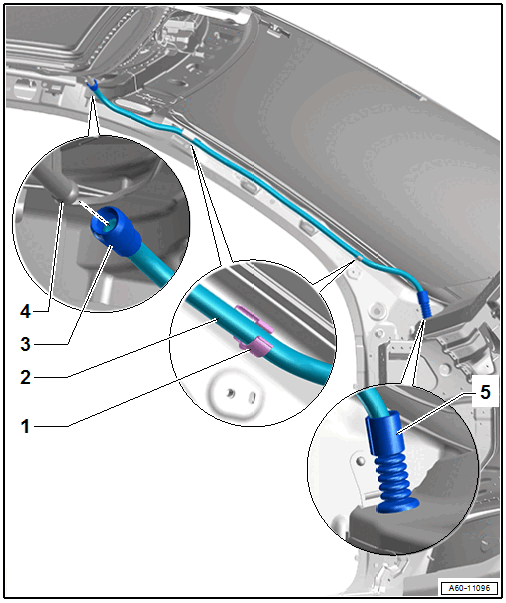

Overview - Front Water Drain Hoses, Q3
- Clip
- For the water drain hose
- Quantity: 2
- Water Drain Hose
- Front
- Cleaning. Refer to WATER DRAIN HOSES, CLEANING .
- Removing and Installing. Refer to FRONT WATER DRAIN HOSES, REMOVING AND INSTALLING, Q3 .
- Pay attention to the markings on the upper clip and on the grommet
- Coupling Piece
- Attach to the connection
- Connection
- On the sunroof frame
- Grommet
- Push all the way into the body using a soap solution
