Overview - Center Armrest/Pass-Through, Q3

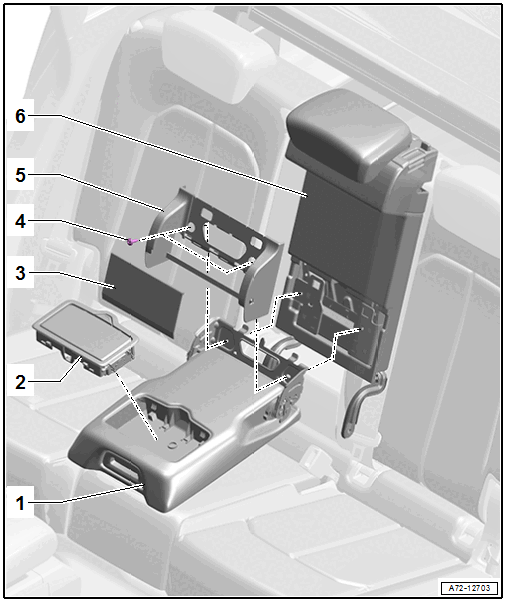

Fig 1: Exploded View Of Rear Center Armrest/Pass-Through, Q3

Courtesy of AUDI OF AMERICA, LLC

Center Armrest
- Removing and Installing. Refer to CENTER ARMREST, REMOVING AND INSTALLING, Q3 .
Cupholder
- Removing and Installing. Refer to CUPHOLDER, REMOVING AND INSTALLING .
Cover
- For the center armrest
- Clip into the trim panel
- Removing and Installing. Refer to CENTER ARMREST, REMOVING AND INSTALLING .
Bolt
- 8 Nm
- Quantity: 2
Trim Panel
- For the center armrest
- Clipped in the center armrest
- Removing and Installing. Refer to CENTER ARMREST TRIM PANEL, REMOVING AND INSTALLING .
Backrest with Pass-Through
- Removing and Installing. Refer to BACKREST WITH PASS-THROUGH, REMOVING AND INSTALLING, Q3 .
