Overview - Center Armrest/Pass-Through, A3

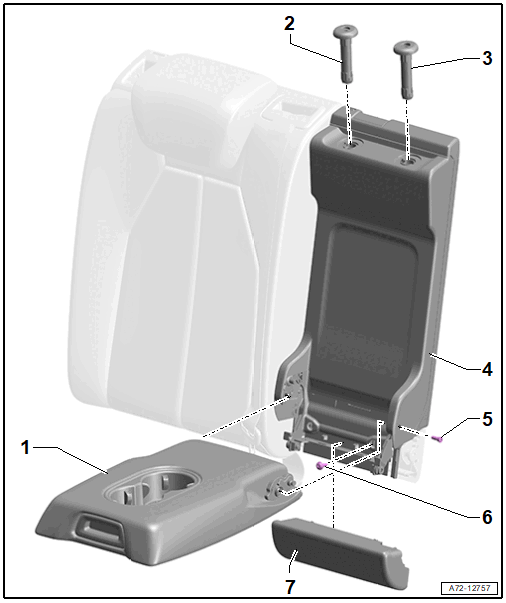

Fig 1: Exploded View Of Rear Center Armrest/Pass-Through, A3

Courtesy of AUDI OF AMERICA, LLC

Center Armrest
- Removing and Installing. Refer to CENTER ARMREST, REMOVING AND INSTALLING, A3 .
Right Headrest Guide
- Without release button
- Cannot be removed without being damaged
- Guide tabs must engage in the mount cut-out on the headrest frame
- Removing and Installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING .
Left Headrest Guide
- With release button
- Cannot be removed without being damaged
- Guide tabs must engage in the mount cut-out on the headrest frame
- Removing and Installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING .
Backrest with Pass-Through
- Removing and Installing. Refer to BACKREST WITH PASS-THROUGH, REMOVING AND INSTALLING .
Bolt
- 12 Nm
- Replace after removing
- Self-locking
- Threaded holes for the bolts must be cleaned, for example, with a thread tap
- Quantity: 2
Bolt
- 9 Nm
- Quantity: 2
Lower Center Cushion
- Removing and Installing. Refer to LOWER CENTER CUSHION, REMOVING AND INSTALLING, A3 .
- Press on until it engages audibly
