Overview - Single Seats, Q3

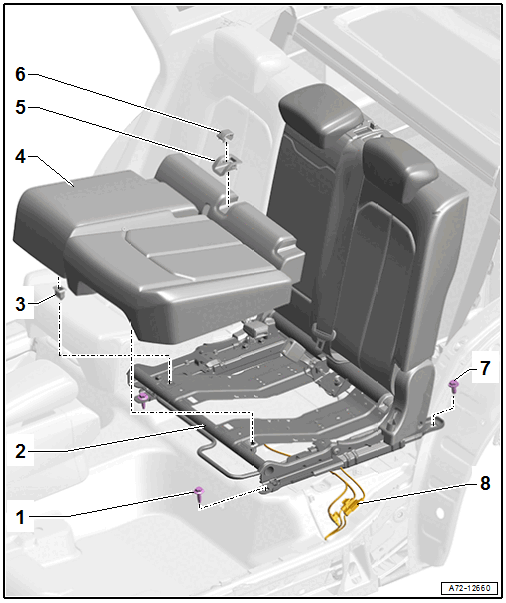

Fig 1: Exploded View Of Rear Single Seats, Q3

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 40 Nm
- Quantity: 2
Rear Seat
- Left
- With folding backrest
- Removing and Installing. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .
Retainers
- Replace after removing the seat cushion
- To secure the seat cushion
- Quantity: 2
- Clipped into the seat frame
Seat Cushion
- Left
- Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, Q3 SEAT CUSHION .
Child Seat Anchor Guide
- Removing and Installing. Refer to REAR CHILD SEAT ANCHOR, REMOVING AND INSTALLING .
- Quantity: 2
Child Seat Anchor Cover
- Removing and Installing. Refer to REAR CHILD SEAT ANCHOR, REMOVING AND INSTALLING .
- Quantity: 2
Bolt
- 50 Nm
- Replace after removing
- Quantity: 2
Connector Station
- Behind the sill panel
- Connector Assignment. Refer to the appropriate Wiring Diagram.
