Overview - Seat Pan Adjustment, Power Seat Adjustment

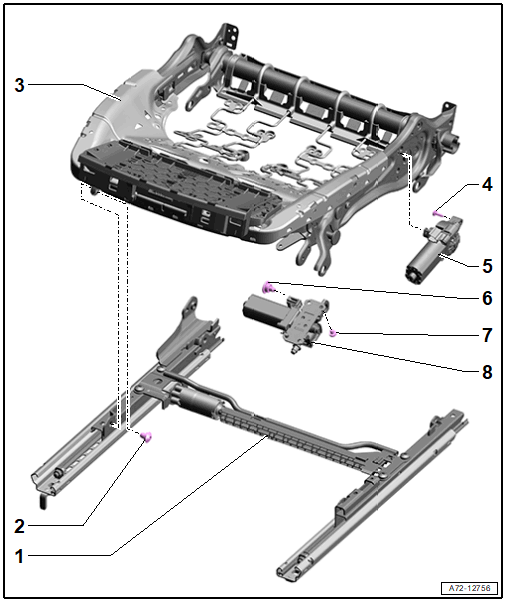

Fig 1: Exploded View Of Front Seat Pan Adjustment (Power Seat Adjustment)

Courtesy of AUDI OF AMERICA, LLC

1. Seat Pan Lower Frame
   • With forward/back adjustment motor
   • Removing and Installing. Refer to Driver Seat Forward/Back Adjustment Motor -V28- /Front Passenger Seat Forward/Back Adjustment Motor -V31-, POWER SEAT ADJUSTMENT .
2. Bolt
   • 22 Nm
   • Replace after removing
   • Clean the threaded hole for the bolt with a thread tap, for example
   • Quantity: 4
   • Self-locking
3. Seat Pan Upper Frame
   • To replace, install all electrical and electronic components and wires in the new upper frame.
   • Removing and Installing. Refer to SEAT HEIGHT ADJUSTMENT MOTOR, REMOVING AND INSTALLING, POWER SEAT ADJUSTMENT .
4. Bolt
   • 5 Nm
   • Quantity: 3
5. Seat Height Adjustment Motor
   • Before servicing, check the availability. Refer to the Parts Information.
   • If not available separately; replace the seat pan if faulty. Refer to OVERVIEW - SEAT PAN .
   • Removing and Installing. Refer to SEAT HEIGHT ADJUSTMENT MOTOR, REMOVING AND INSTALLING, POWER SEAT ADJUSTMENT .
6. Bolt
   • 20 Nm
   • Replace after removing
   • Self-locking
   • Clean the threaded hole for the bolt with a thread tap, for example
7. Bolt
   • 10 Nm
   • Replace after removing
   • Self-locking
   • Threaded holes for the bolts must be cleaned, for example, with a thread tap
   • Quantity: 2
8. Seat Angle Adjustment Motor
   • Before servicing, check the availability. Refer to the Parts Information.
   • If not available separately; replace the seat pan if faulty. Refer to OVERVIEW - SEAT PAN .
   • Removing and Installing. Refer to SEAT ANGLE ADJUSTMENT MOTOR, REMOVING AND INSTALLING, POWER SEAT ADJUSTMENT .
