Overview - Seat Pan Adjustment, Manual Seat Adjustment

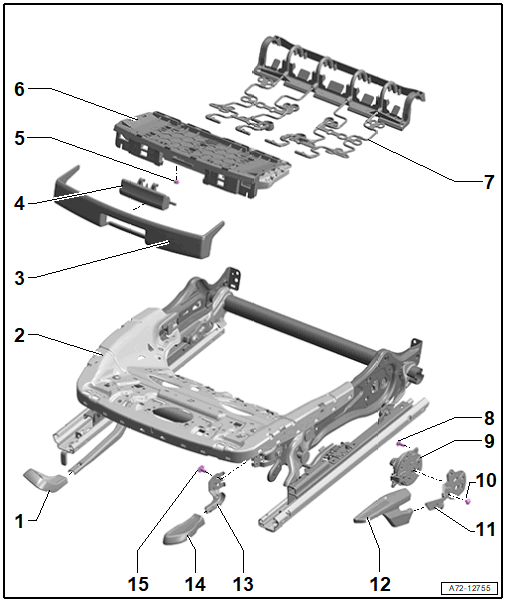

Fig 1: Exploded View Of Front Seat Pan Adjustment (Manual Seat Adjustment)

Courtesy of AUDI OF AMERICA, LLC

1. Seat Forward/Back Adjustment Handle
   • Replace after removing
   • Removing and Installing. Refer to SEAT FORWARD/BACK ADJUSTMENT HANDLE, REMOVING AND INSTALLING, MANUAL SEAT ADJUSTMENT, Q3 .
2. Seat Pan
3. Seat Depth Adjuster Trim
   • Sport seat only
   • Removing and Installing. Refer to SEAT DEPTH ADJUSTER TRIM, REMOVING AND INSTALLING .
4. Seat Depth Adjuster Handle
   • Sport seat only
   • Removing and Installing. Refer to SEAT DEPTH ADJUSTER TRIM, REMOVING AND INSTALLING .
5. Nut
   • 6.5 Nm
   • Quantity: 4
6. Seat Depth Adjuster
   • Sport seat only
   • Removing and Installing. Refer to SEAT DEPTH ADJUSTER, REMOVING AND INSTALLING .
7. Wire Mat
   • Only A3
   • Removing and Installing. Refer to WIRE MAT, REMOVING AND INSTALLING .
8. Bolts
   • 6.5 Nm
   • Quantity: 3
9. Seat Height Adjustment
   • Only A3
   • Removing and Installing. Refer to SEAT HEIGHT ADJUSTER, REMOVING AND INSTALLING, MANUAL SEAT ADJUSTMENT .
10. Bolt
    • 5 Nm
    • Quantity: 2
11. Seat Height Adjustment Operating Lever
    • Removing and Installing. Refer to SEAT HEIGHT ADJUSTMENT HANDLE, REMOVING AND INSTALLING .
12. Seat Height Adjustment Handle
    • Removing and Installing. Refer to SEAT HEIGHT ADJUSTMENT HANDLE, REMOVING AND INSTALLING .
13. Seat Angle Adjuster Operating Lever
    • Equipped on some models
    • Removing and Installing. Refer to SEAT ANGLE ADJUSTER, REMOVING AND INSTALLING .
14. Seat Angle Adjuster Handle
    • Equipped on some models
    • Removing and Installing. Refer to SEAT ANGLE ADJUSTER, REMOVING AND INSTALLING .
15. Bolt
    • 7.5 Nm
    • Quantity: 2
