Speaker Trim, Removing And Installing

Special tools and workshop equipment required

• Scraper no. 1 from the Scraper Set: VAS 6845
  Fig 1: Identifying Clip release lever no. 4 from the Scraper Set VAS6845

  Courtesy of AUDI OF AMERICA, LLC

Outer Speaker Trim, Removing

Courtesy of AUDI OF AMERICA, LLC

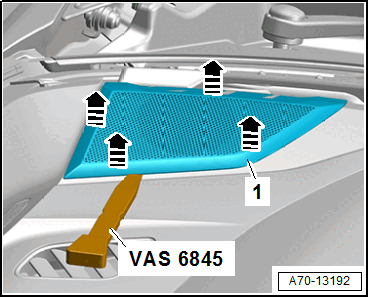

-- Carefully disengage the speaker trim -1- using the scraper from the Scraper Set : VAS 6845  -arrows- by pushing the scraper only approximately 2 mm in the gap under the speaker trim.

TIP:

If the scraper is inserted farther, it will be located under the mount. It is then not possible to pry out the speaker trim.

-- Disengage the remaining speaker trim retainers and remove toward the rear.

Center Speaker Trim, Removing

Courtesy of AUDI OF AMERICA, LLC

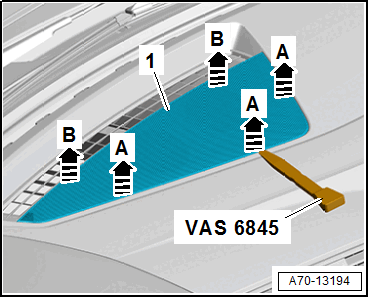

-- Carefully disengage the speaker trim -1- using the scraper from the Scraper Set : VAS 6845  -arrows A- by pushing the scraper only approximately 2 mm into the gap under the speaker trim as shown here as an example.

TIP:

If the scraper is inserted farther, it will be located under the mount. It is then not possible to pry out the speaker trim.

-- Disengage the remaining tabs for the speaker trim along the seam.

-- To do this, push the scraper or a long flat-head screwdriver forward under the speaker trim and disengage the front retainers -B arrows-.

Installing

Install in reverse order of removal.
