Adjustment Dimensions

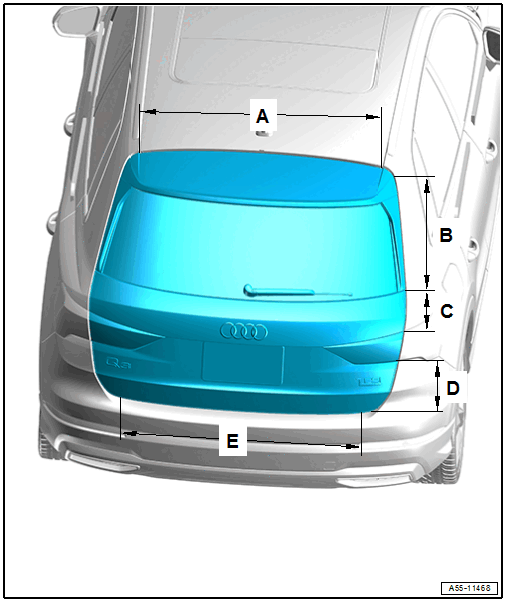

GWWA55-11468Courtesy of AUDI OF AMERICA, LLC
  1. Rear Lid to Roof
    • Gap dimension = 5.0 mm
  2. Rear Lid to Side Panel
    • Gap dimension = 4.0 mm
  3. Rear Lid to Side Panel
    • Gap dimension = 3.5 mm
  4. Rear Lid to Bumper Cover
    • Gap dimension = 3.8 mm
  5. Rear Lid to Rear Lid End
    • Gap dimension = 5.3 mm
