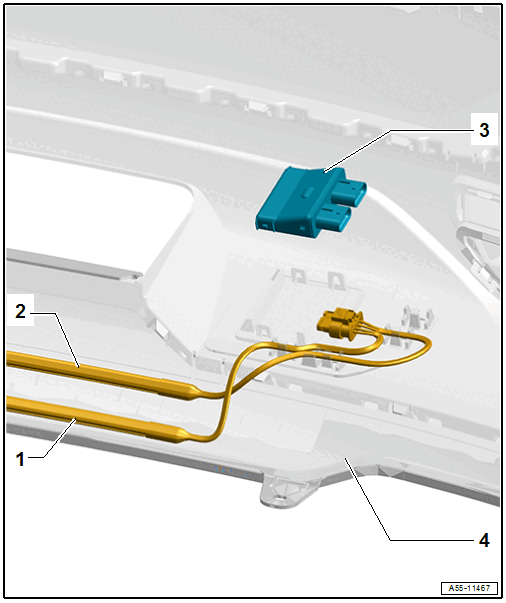

Overview - Sensor-Controlled Rear Lid Opener

Courtesy of AUDI OF AMERICA, LLC

1. Power Rear Lid Opening Sensor -G750-
   • Replace after removing
   • Removing and Installing. Refer to POWER REAR LID OPENING SENSORS -G750- / -G760-, REMOVING AND INSTALLING .
2. Power Rear Lid Opening Sensor 2 -G760-
   • Replace after removing
   • Removing and Installing. Refer to POWER REAR LID OPENING SENSORS -G750- / -G760-, REMOVING AND INSTALLING .
3. Power Rear Lid Opening Control Module -J938-
   • Removing and Installing. Refer to Power Rear Lid Opening Control Module -J938-, REMOVING AND INSTALLING .
4. Bumper Cover
