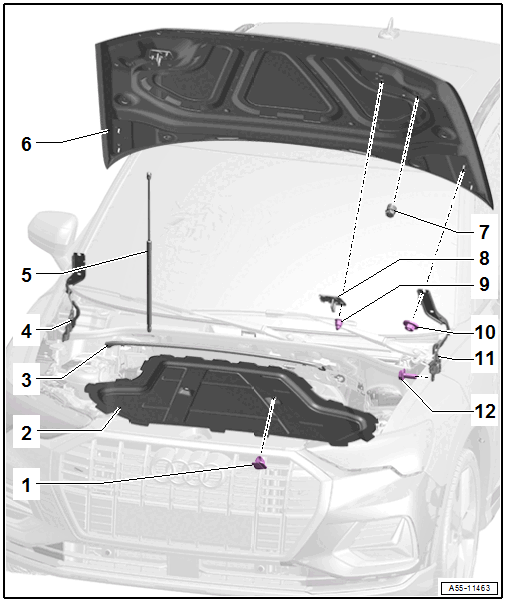

Overview - Hood
- Clip
- For the insulation
- Quantity: 2
- Insulation
- Removing and Installing. Refer to INSULATION, REMOVING AND INSTALLING .
- Impact Guard
- Removing and Installing. Refer to IMPACT GUARD, REMOVING AND INSTALLING .
- Hinge
- Right
- Removing and Installing. Refer to HINGES, REMOVING AND INSTALLING .
- Gas-Filled Strut
- Removing and Installing. Refer to GAS-FILLED STRUT, REMOVING AND INSTALLING .
- Venting. Refer to GAS-FILLED STRUT, VENTING .
- Hood
- Removing and Installing. Refer to HOOD, REMOVING AND INSTALLING .
- Adjusting. Refer to HOOD, ADJUSTING .
- Adjusting Buffer
- Adjusting. Refer to HEIGHT, ADJUSTING USING ADJUSTING BUFFER .
- Striker
- Removing and Installing. Refer to STRIKER, REMOVING AND INSTALLING .
- Adjusting. Refer to SIDE AND HEIGHT ADJUSTMENT AT STRIKER .
- Nut
- Quantity: 2
- 9 Nm
- Nut
- Quantity: 2
- 21 Nm
- Hinge
- Left
- Removing and Installing. Refer to HINGES, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- 21 Nm
