Overview - Charge Door Unit

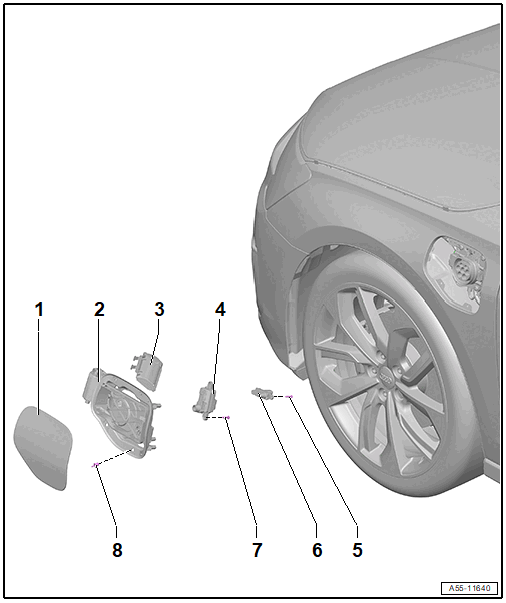

Fig 1: Exploded View Of Charge Door Unit

Courtesy of AUDI OF AMERICA, LLC

Charge Door Unit Trim
- Removing and Installing. Refer to CHARGE DOOR UNIT TRIM, REMOVING AND INSTALLING .
Charge Door Unit
- Removing and Installing. Refer to CHARGE DOOR UNIT, REMOVING AND INSTALLING .
Cap
- For the charge door unit
High-Voltage Charge Door Lock 1 Adjuster -F496-
- Removing and Installing. Refer to High-Voltage Charge Door Lock 1 Adjuster -F496-, REMOVING AND INSTALLING .
Bolt
- Quantity: 2
- 1.5 Nm
Charging Socket 1 LED Module - L263-
- Removing and Installing. Refer to Charging Socket 1 LED Module -L263-, REMOVING AND INSTALLING .
Bolt
- Quantity: 2
- 1.5 Nm
Expanding Rivet
- Quantity: 4
