Bumper Carrier, Removing And Installing, With Trailer Hitch: Removing

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

Vehicles with diesel engine and reducing agent tank:

-- Remove the reducing agent tank. Refer to the appropriate service information .

Continuation for All Vehicles:

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

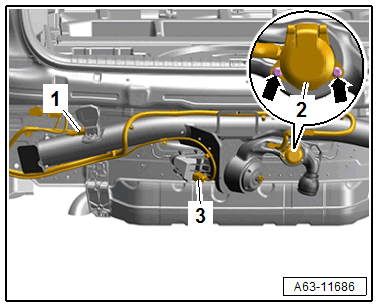

-- Remove the trailer socket -2- and free up the wiring harness.

-- Disconnect the connector -3- and antenna wires -1- and free up the wiring harness.

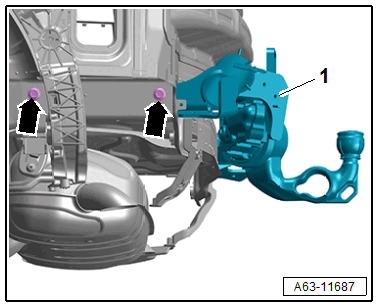

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bumper carrier -1- with a second technician.
