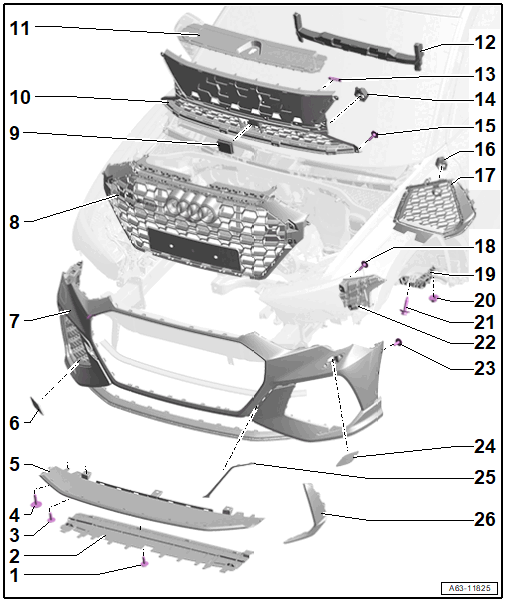

Overview - Bumper Cover, RS Q3
- Bolt
- Quantity: 5
- 2 Nm
- End Panel
- The bumper cover
- Removing and Installing. Refer to BUMPER COVER END PLATE, REMOVING AND INSTALLING .
- Bolt
- Quantity: 3
- 4.5 Nm
- Bolt
- Quantity: 6
- 2 Nm
- Impact Guard
- Removing and Installing. Refer to IMPACT GUARD, REMOVING AND INSTALLING, RS Q3 .
- Cover
- For the towing eye
- Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Radiator Grille
- Overview. Refer to OVERVIEW - RADIATOR GRILLE .
- Cover
- For Control Module for Adaptive Cruise Control -J428-
- Air Intake Grille
- Center
- Removing and Installing. Refer to CENTER AIR INTAKE GRILLE, REMOVING AND INSTALLING, RS Q3 .
- Lock Carrier Cover
- Removing and Installing. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .
- Molded Foam Part
- Engaged in the center air intake grille
- Clip
- Quantity: 6
- Mount
- for the parking aid sensor
- Clipped in the center air intake grille
- Bolt
- Quantity: 8
- 2 Nm
- Mount
- for the parking aid sensor
- Clipped in the side air intake grille
- Air Intake Grille
- Side
- Removing and Installing. Refer to SIDE AIR INTAKE GRILLE, REMOVING AND INSTALLING, RS Q3 .
- Bolt
- Quantity: 2
- 2 Nm
- Mount
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
- Nut
- Quantity: 2
- 4 Nm
- Bolt
- 2 Nm
- Side End Panel
- For the bumper cover
- Removing and Installing. Refer to SIDE BUMPER COVER END PLATE, REMOVING AND INSTALLING, RS Q3 .
- Bolt
- 4 Nm
- Cover
- For the headlamp washer system washer nozzle
- Removing and Installing. Refer to HEADLAMP WASHER SYSTEM WASHER NOZZLE COVER, REMOVING AND INSTALLING .
- Trim Molding
- Side Air Intake Grille
- Removing and Installing. Refer to SIDE AIR INTAKE GRILLE TRIM MOLDING, REMOVING AND INSTALLING, RS Q3 .
- Decorative Trim
- Removing and Installing. Refer to BUMPER COVER DECORATIVE TRIM, REMOVING AND INSTALLING, RS Q3 .
