Height Adjustment:

Courtesy of AUDI OF AMERICA, LLC

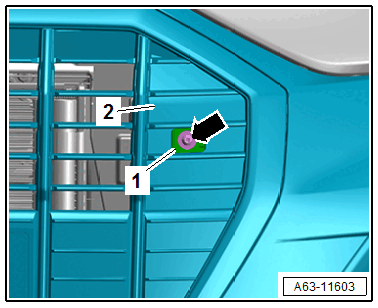

-- Loosen the bolt -arrow-.

-- Push the bumper cover -2- to the height.

• The height of the bumper cover is set by the headlamp mount -1-.

-- Check the gap dimension and repeat the adjustment if necessary.

-- Adjust the headlamps. Refer to HEADLAMP, ADJUSTING .
