Overview - Infotainment System, MIB 3 (I8W/I8Y)

The infotainment system includes the following functions/components.

• Information Electronics Control Module 1 -J794- in the Glove Compartment
• Radio function is integrated in the Information Electronics Control Module 1 -J794-
• Front Information Display Control Head -J685-, display in center of the instrument panel
• Instrument Cluster Control Module -J285-, Display in Instrument Cluster
• The Control Module for Emergency Call Module and Communication Unit - J949- is located behind the A/C Controls in the center instrument panel.
• USB Distributor -R293- in the front center console storage compartment, two USB ports for data and charging
• Sound System, Basic Plus Sound System, 8RL
• Bluetooth Hands-Free Calling, 9ZX

Optional

• Digital radio integrated in the Information Electronics Control Module 1 -J794-, ER1/ER2/EZ1 and QV3.
• The satellite radio is integrated in the Information Electronics Control Module 1 -J794-, ER3 and QV3
• Digital Sound System Control Module -J525- under the left front seat, 9VS
• MMI Navigation plus navigation system, 7UG
• TV Tuner -R78- under the right front seat, ER5 and QV1
• Sound system: standard sound system, 9VD
• Sound system: premium sound system, 9VS
• Audi phone box light, 9ZV
• Audi phone box, 9ZE

Courtesy of AUDI OF AMERICA, LLC

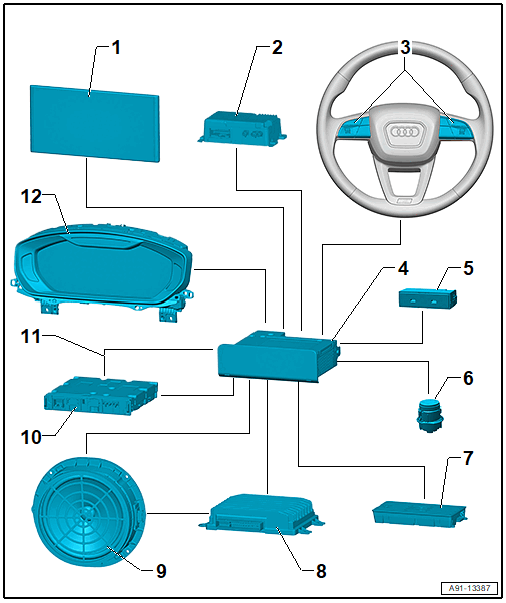

1. Front Information Display Control Head -J685-, Display in Center of the Instrument Panel
2. The Control Module for Emergency Call Module and Communication Unit - J949- is Located Behind the A/C Controls in the Center Instrument Panel.
3. Multifunction Buttons on Steering Wheel Right Multifunction Buttons on Steering Wheel -E441- /Left Multifunction Buttons on Steering Wheel -E440-
4. Information Electronics Control Module 1 -J794- in the Glove Compartment
5. USB Distributor -R293- in the Front Center Console Storage Compartment
6. Driver Volume Control -E67- in the Center Console
7. Mobile Device Charger 1 -J1146- in the Front Center Console Storage Compartment
8. Digital Sound System Control Module -J525- under the Left Front Seat
9. Sound Systems
10. TV Tuner -R78- under the Right Front Seat.
11. MOST Bus
12. Instrument Cluster with Instrument Cluster Control Module - J285-
