Overview - Infotainment System, MIB 2+, MMI Radio (I8E)

• Information Electronics Control Module 1 -J794- with integrated memory card reader in the glove compartment
• Radio function is integrated in the Information Electronics Control Module 1 -J794-
• Instrument Cluster Control Module -J285-, Digital Instrument Cluster, 9S0
• USB Distributor -R293- in the front center console storage compartment, USB Charging, UE4
• Sound System, Basic Sound System, 8RE
• Video input for rearview camera system, KA2
• Bluetooth Hands-Free Calling, 9ZX
• Voice recognition system, basic, QH1
• Multifunction Steering Wheel
• Emergency Call System, NZ2/NZ3/NZ4

Optional

• Digital radio integrated in the Information Electronics Control Module 1 -J794-, ER1/ER2/EZ1 and QV3.
• The satellite radio is integrated in the Information Electronics Control Module 1 -J794-, ER3 and QV3
• Sound System, Basic Plus Sound System, 8RL

Courtesy of AUDI OF AMERICA, LLC

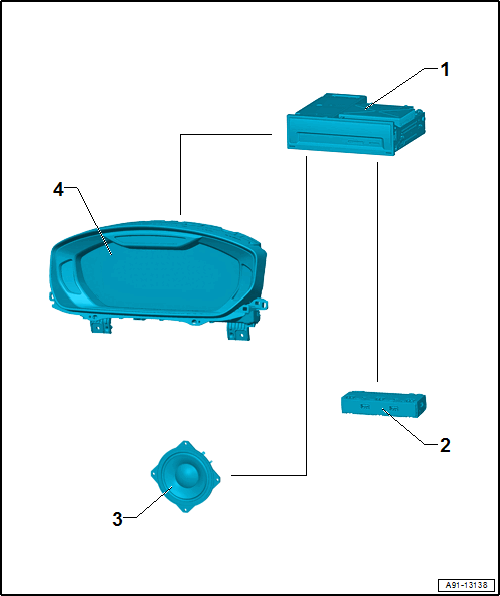

1. Information Electronics Control Module 1 -J794- in the Glove Compartment
2. USB Distributor -R293- in the Front Center Console Storage Compartment
3. Sound Systems
4. Instrument Cluster Control Module -J285- in the Instrument Panel
