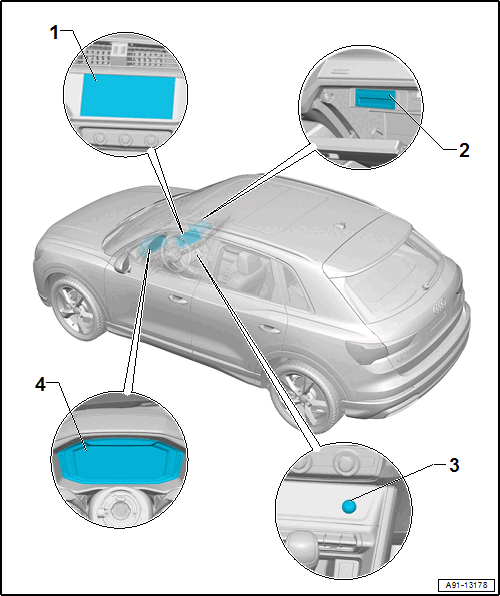

Component Location Overview - Infotainment System

Courtesy of AUDI OF AMERICA, LLC

1. Front Information Display Control Head -J685-
   • Inside the center of the instrument panel
   • Removing and Installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .
2. Information Electronics Control Module 1 -J794-
   • In the glove compartment
   • Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
3. Driver Volume Control -E67-
   • In the center console
   • Removing and Installing. Refer to Driver Volume Control -E67-, REMOVING AND INSTALLING .
4. Instrument Cluster Control Module -J285-
   • In the instrument panel
   • Removing and installing. Refer to INSTRUMENT CLUSTER WITH INSTRUMENT CLUSTER CONTROL MODULE -J285-, REMOVING AND INSTALLING .
