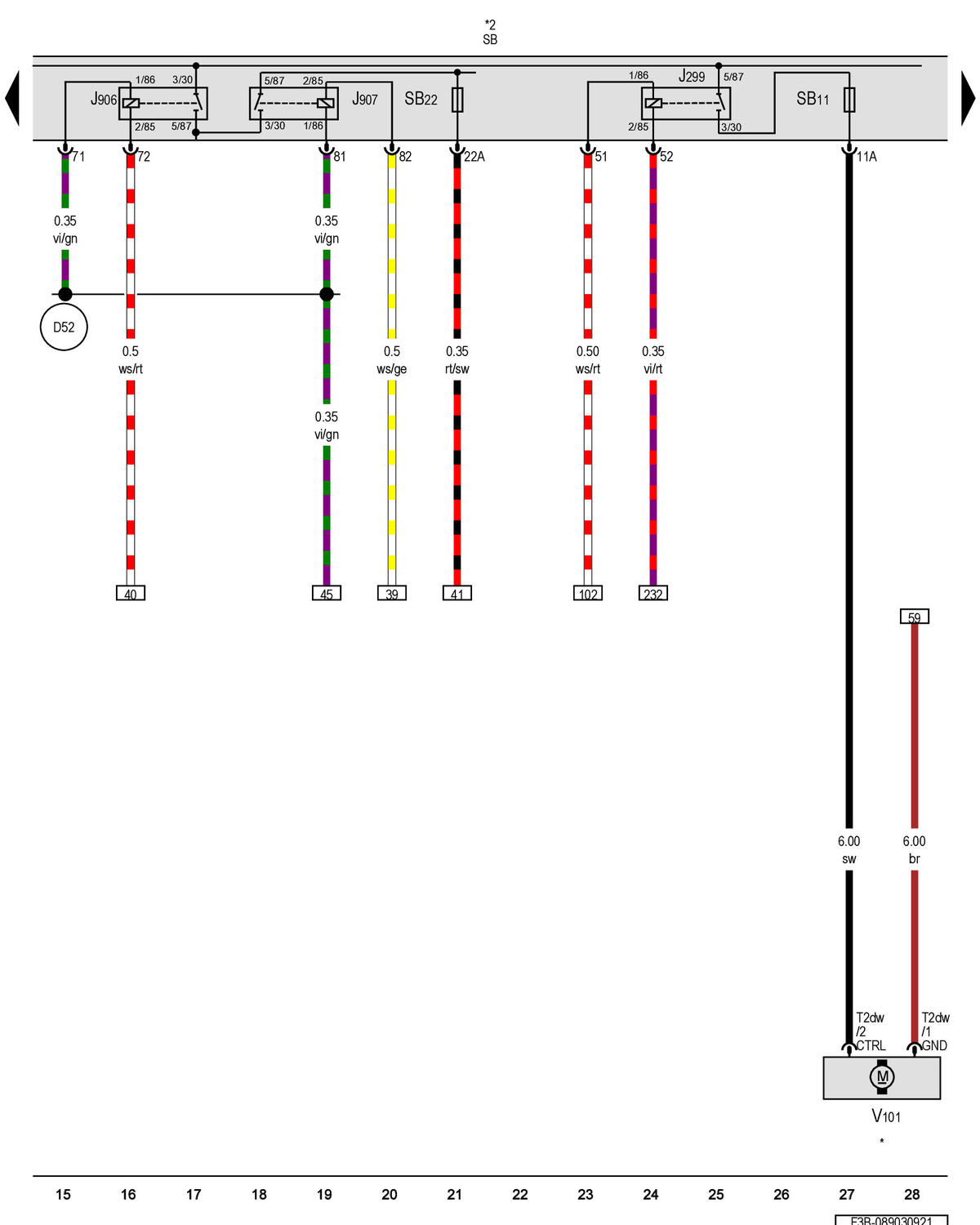

Fuse Panel B, Secondary Air Injection Pump Motor

Courtesy of AUDI OF AMERICA, LLC

J299

Secondary Air Injection Pump Relay Type:BT, Slpdok:, Aim:BTJ299

J906

Starter Relay 1 Type:BT, Slpdok:, Aim:BTJ906

J907

Starter Relay 2 Type:BT, Slpdok:, Aim:BTJ907

SB

Fuse Panel B Type:BT, Slpdok:, Aim:BTSB-

SB11

Fuse 11 (On Fuse Panel B) Type:BT, Slpdok:, Aim:BTSB-

SB22

Fuse 22 (On Fuse Panel B) Type:BT, Slpdok:, Aim:BTSB-

T2dw

2-Pin Connector, Black Type:VA, Slpdok:, Aim:VAT2dw

V101

Secondary Air Injection Pump Motor Type:BT, Slpdok:, Aim:BTV101

D52

Positive Connection (15a) (in Engine/Motor Compartment Wiring Harness)

*

Pre-Wired Component

*2

Refer to Applicable Wiring Diagram for Fuse Positions
