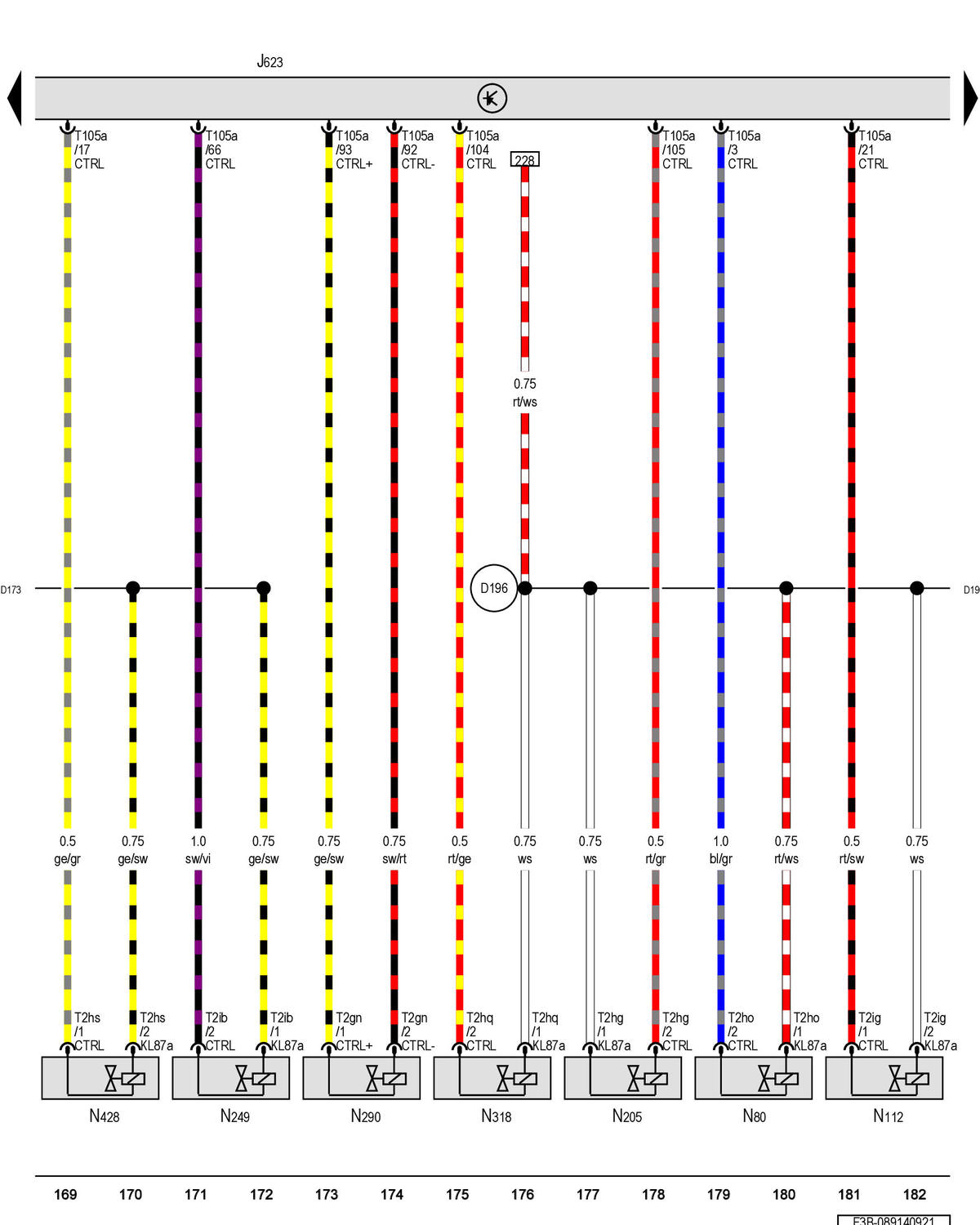

Engine/Motor Control Module, EVAP Canister Purge Regulator Valve 1, Secondary Air Injection Solenoid Valve, Camshaft Adjustment Valve 1, Turbocharger RECIRCULATION Valve, Fuel Metering Valve, Exhaust Camshaft Adjustment Valve 1, Oil Pressure Regulation Valve
J623
Engine/Motor Control Module Type:BT, Slpdok:, Aim:BTJ623
N80
EVAP Canister Purge Regulator Valve 1 Type:BT, Slpdok:, Aim:BTN80
N112
Secondary Air Injection Solenoid Valve Type:BT, Slpdok:, Aim:BTN112
N205
Camshaft Adjustment Valve 1 Type:BT, Slpdok:, Aim:BTN205
N249
Turbocharger Recirculation Valve Type:BT, Slpdok:, Aim:BTN249
N290
Fuel Metering Valve Type:BT, Slpdok:, Aim:BTN290
N318
Exhaust Camshaft Adjustment Valve 1 Type:BT, Slpdok:, Aim:BTN318
N428
Oil Pressure Regulation Valve Type:BT, Slpdok:, Aim:BTN428
T2gn
2-Pin Connector, Black Type:VA, Slpdok:, Aim:VAT2gn
T2hg
2-Pin Connector, Black Type:VA, Slpdok:, Aim:VAT2hg
T2ho
2-Pin Connector, Black Type:VA, Slpdok:, Aim:VAT2ho
T2hq
2-Pin Connector, Black Type:VA, Slpdok:, Aim:VAT2hq
T2hs
2-Pin Connector, Black Type:VA, Slpdok:, Aim:VAT2hs
T2ib
2-Pin Connector, Black Type:VA, Slpdok:, Aim:VAT2ib
T2ig
2-Pin Connector, Black Type:VA, Slpdok:, Aim:VAT2ig
T105a
105-Pin Connector, Black Type:VA, Slpdok:, Aim:VAT105a
D173
Connection 87 (in Engine Pre-Wiring Harness)
D196
Connection 87A (in Engine Pre-Wiring Harness) 2
