Sub-Assembly Bracket, Removing And Installing: Installing

Install in the reverse order of removal while noting the following:

• Replace bolts that were tightened with an additional turn after removing them.
• Replace the O-ring and seals after removing.
• Used coolant cannot be used again.

-- Coat the new O-rings -4- with coolant.

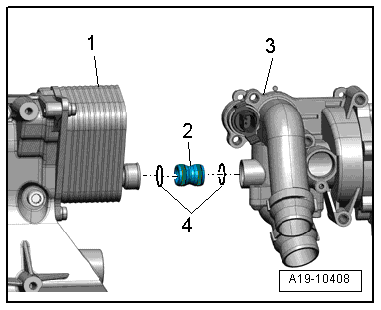

Fig 1: Accessory Assembly Bracket, Coolant Pump Housing, Connection And O-Rings

Courtesy of AUDI OF AMERICA, LLC

-- Insert the connection -2- into the coolant pump housing -3-.

-- Slide the sub-assembly bracket -1- onto the connection and then install and tighten the bolts.

-- Install the oil filter element and check the oil level. Refer to ENGINE OIL .

-- Install the generator. Refer to GENERATOR, REMOVING AND INSTALLING .

-- Install the A/C compressor. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING ON BRACKET .

-- Install the ribbed belt. Refer to RIBBED BELT, REMOVING AND INSTALLING .

-- Fill with coolant. Refer to COOLANT, DRAINING AND FILLING .
