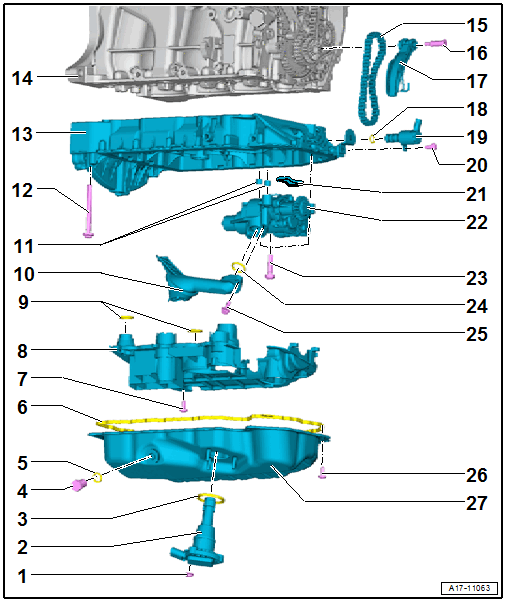

Overview - Oil Pan/Oil Pump

1. Nut
   • 9 Nm
2. Oil Level Thermal Sensor -G266-
   • Removing and Installing. Refer to Oil Level Thermal Sensor -G266-, REMOVING AND INSTALLING .
3. Seal
   • Replace after removing
   • If the seal is not available separately, then the Oil Level Thermal Sensor -G266- must be replaced
4. Oil Drain Plug or Plug
   • Oil drain plug for sheet metal oil pan lower section
   • Oil Drain Plug 30 Nm
   • Plug for plastic oil pan lower section
   • Turn the plug all the way using a flat-head screwdriver or a coin
5. Gasket/O-Ring
   • Replace after removing
   • Allocation. Refer to the Parts Information.
6. Seal/Liquid Sealant
   • Replace the seal after removal.
   • Allocation. Refer to the Parts Information.
7. Bolt
   • 4 Nm +45°
   • Replace after removing
8. Oil Baffle
   • Replace after removing
9. O-Rings
   • Replace after removing
   • Coat with engine oil
10. Suction Line
    • Clean the screen if there are debris
11. Centering Bracket
    • Quantity: 2
    • For the oil pump
12. Bolt
    • Replace after removing
    • Tightening sequence. Refer to Fig 4.
13. Oil Pan Upper Section
    • Removing and Installing. Refer to OIL PAN UPPER SECTION, REMOVING AND INSTALLING .
14. Cylinder Block
15. Oil Pump Drive Chain
    • Mark the running direction before removal
16. Bolt
    • 9 Nm
17. Chain Tensioner
18. O-Ring
    • Replace after removing
    • Coat with engine oil
19. Oil Pressure Regulation Valve -N428-
    • Removing and Installing. Refer to Oil Pressure Regulation Valve -N428-, REMOVING AND INSTALLING .
20. Bolt
    • Replace after removing
    • Tightening specification -item  : Bolt.
21. Oil Screen
22. Oil Pump
    • Removing and Installing. Refer to OIL PUMP, REMOVING AND INSTALLING .
23. Bolt
    • 8 Nm +90°
    • Replace after removing
24. O-Ring
    • Replace after removing
    • Coat with engine oil
25. Bolt
    • 4 Nm +45°
    • Replace after removing
26. Bolt
    • Replace after removing
    • Plastic oil pan lower section tightening sequence. Refer to Fig 2.
    • Metal oil pan lower section tightening sequence. Refer to Fig 3.
27. Oil Pan Lower Section
    • Removing and Installing. Refer to OIL PAN LOWER SECTION, REMOVING AND INSTALLING .

Oil Pan Lower Section Made of Plastic - Tightening Specification and Sequence

• Replace bolts that were tightened with an additional turn after removing them.

-- Tighten the bolts in the steps in the sequence shown:

Step	Bolts	Tightening Specification/Additional Turn
1.	-1 to 20-	Install all the way by hand
2.	-1 to 20-	8 Nm
3.	-1 to 20-	90° additional turn

Oil Pan Lower Section Made of Steel - Tightening Specification and Sequence

• Replace bolts that were tightened with an additional turn after removing them.

-- Tighten the bolts in the steps in the sequence shown:

Step	Bolts	Tightening Specification/Additional Turn
1.	-1 to 20-	Install all the way by hand
2.	-1 to 20-	8 Nm
3.	-1 to 20-	45° additional turn

Oil Pan Upper Section - Tightening Specifications and Sequence

• Replace bolts that were tightened with an additional turn after removing them.
• If when removing 14 bolts are installed then for the assembly 18 bolts must always be used.

Depending on the Version, Aluminum or Steel Bolts may be Installed.

A - Aluminum Bolts:

-- Tighten the bolts in the steps in the sequence shown:

Step	Bolts	Tightening Specification/Additional Turn
1.	-1 through 18-	8 Nm
2.	-1 and 2-	180° additional turn
3.	-3 to 13-	45° additional turn
4.	-14 through 18-	90° additional turn

B - Steel and Aluminum Bolts:

-- In this case, bolts 1 through 13 are steel bolts and bolts 14 through 18 are aluminum bolts.

-- Tighten the bolts in the steps in the sequence shown:

Step	Bolts	Tightening Specification/Additional Turn
1.	-1 through 13-	15 Nm
2.	-14 through 18-	8 Nm
3.	-1 through 18-	90° additional turn
