Overview - Crankcase Ventilation

1. Cylinder Head Cover
2. Seal
   • Replace after removing
3. Hose
   • To the EVAP Canister Purge Regulator Valve 1 -N80-
4. Oil Separator
   • Removing and Installing. Refer to OIL SEPARATOR, REMOVING AND INSTALLING .
5. Seal
   • Replace after removing
6. Hose
   • For the crankcase ventilation
   • To the turbocharger
7. Bolt
   • 4 Nm
   • Thread cutting
8. Seal
   • Replace after removing
9. Bolt
   • Thread cutting
   • Tightening Specifications and Sequence
     • Rest of World version. Refer to Fig 2.
     • China market version. Refer to Fig 3.

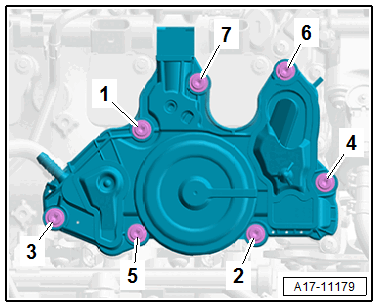

Oil Separator - Tightening Specification and Sequence, Rest of World Version

Existing Threads:

-- Tighten the bolts to 8 Nm in the sequence -1 to 7-.

New Tapping Threads:

-- Install the bolts to 11 Nm in the sequence -1 to 7-.

Oil Separator - Tightening Specification and Sequence, China Market Version

Existing Threads:

-- Tighten the bolts to 8 Nm in the sequence -1 to 7-.

New Tapping Threads:

-- Install the bolts to 11 Nm in the sequence -1 to 7-.
