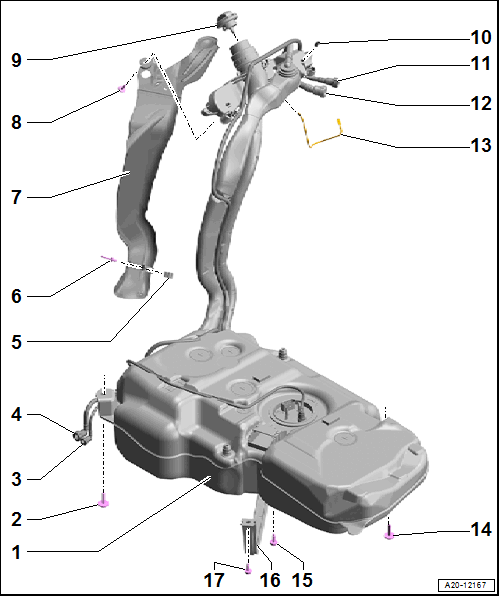

Overview - Fuel Tank, TFSI Fwd Vehicles
- Fuel Tank
- Removing and Installing. Refer to FUEL TANK, REMOVING, TFSI VEHICLES .
- Bolt
- 20 Nm +90°
- Replace after removing
- Fuel Supply Line
- To the engine
- Clipped to the fuel tank
- Do not kink
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Bleeder Line
- To the EVAP Canister Purge Regulator Valve 1 -N80-
- Clipped to the fuel tank
- Do not kink
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Bracket
- For the breather line
- Installed depending on the market
- Rivet
- Installed depending on the market
- Protective Plate
- For the fuel filler neck
- Installed depending on the market
- Bolt
- 8 Nm +90°
- Replace after removing
- Quantity: 2
- Cap
- Turn until it clicks into place.
- Attached to the fuel filler door unit with fastener
- Spacer
- Bleeder Line
- To the EVAP Canister
- Clipped to the fuel tank
- Do not kink
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Bleeder Line
- To the EVAP Canister
- Do not kink
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Ground Connection
- For the fuel filler neck
- For discharging electrostatic charge. Refer to Fig 2.
- Bolt
- 20 Nm +90°
- Replace after removing
- Bolt
- 20 Nm +90°
- Replace after removing
- Mounting Strap
- Bolt
- 20 Nm +90°
- Replace after removing
Ground Connection Routing
-- Route the ground connections as shown.
-- Make sure the following connectors are secure:
- The connector -3- must be firmly secured on the fuel filler neck metal ring -4-.
- The ground connection contact -2- must be engaged in the hole on the fuel tank -5- and secured with a spacer -1-.
