Overview - Fuel Tank, TFSI AWD Vehicles

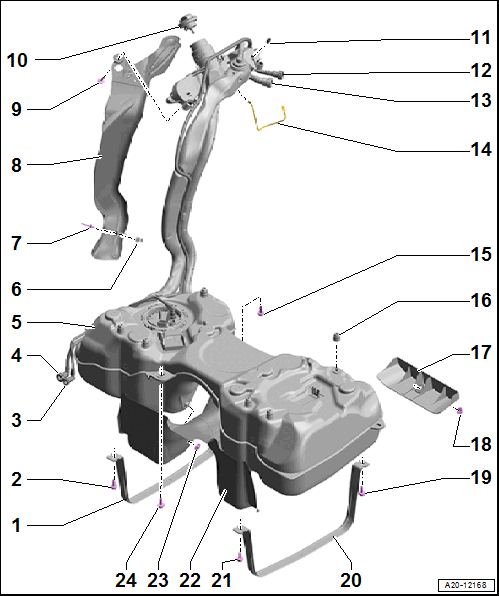

Fig 1: Exploded View Of Fuel Tank (TFSI AWD Vehicles)

Courtesy of AUDI OF AMERICA, LLC

Right Mounting Strap
- Secured to the fuel tank with expanding clips.
Bolt
- 20 Nm +90°
- Replace after removing
Fuel Supply Line
- To the engine
- Do not kink
- Clipped to the fuel tank
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
Bleeder Line
- To the EVAP Canister Purge Regulator Valve 1 -N80-
- Do not kink
- Clipped to the fuel tank
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
Fuel Tank
- Fuel Level Sensor 2 -G169- is integrated in the fuel tank
- Removing and Installing. Refer to FUEL TANK, REMOVING, TFSI VEHICLES .
Bracket
- For the breather line
- Installed depending on the market
Rivet
- Installed depending on the market
Protective Plate
- For the fuel filler neck
- Installed depending on the market
Bolt
- 8 Nm +90°
- Replace after removing
- Quantity: 2
Cap
- Turn until it clicks into place.
- Attached to the fuel filler door unit with fastener
Spacer
Bleeder Line
- To the EVAP Canister
- Do not kink
- Clipped to the fuel tank
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
Bleeder Line
- To the EVAP Canister
- Do not kink
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .

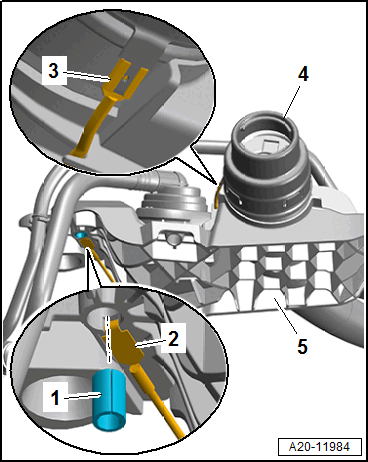

Ground Connection
- For the fuel filler neck
- For discharging electrostatic charge. Refer to Figure.
Bolt
- 20 Nm +90°
- Replace after removing
Rubber Buffer
- Quantity: 4
- Insert in the mount on the fuel tank
Air Duct
- Quantity: 2
Nut
- 2 Nm
Bolt
- 20 Nm +90°
- Replace after removing
Left Mounting Strap
- Secured to the fuel tank with expanding clips.
Bolt
- 20 Nm +90°
- Replace after removing
Heat Shield
- For the fuel tank
Nut
- 2 Nm
- For the heat shield
- Quantity: 4
Bolt
- 20 Nm +90°
- Replace after removing
