Muffler, Removing And Installing: Removing

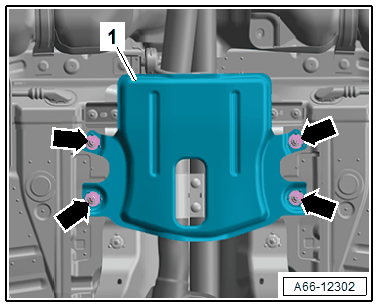

-- If installed, remove the nuts -arrows- and then remove the underbody trim panel -1-.
-- Loosen the clamping sleeve -arrow- and push it toward the rear.
CAUTION:
Risk of accident due to the heavy weight of the muffler.
- A second technician is required for the following work steps.

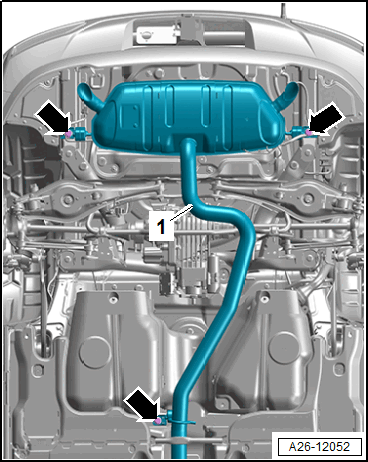

-- Remove the bolts -arrows- and then remove the muffler.
