Coolant Pump, Removing And Installing: Installing

Additional procedures:

• Secure all hose connections with hose clamps that match the ones used in series production. Refer to the Parts Information.
• Used coolant cannot be used again.

-- Install the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

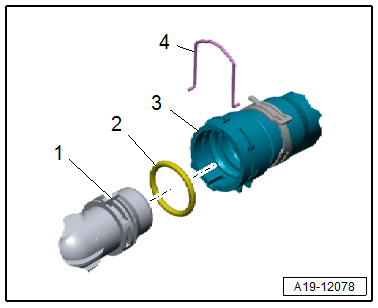

-- Connect the coolant connection with connector coupling. Refer to Figure.

-- Fill the coolant. Refer to Coolant, Filling .
