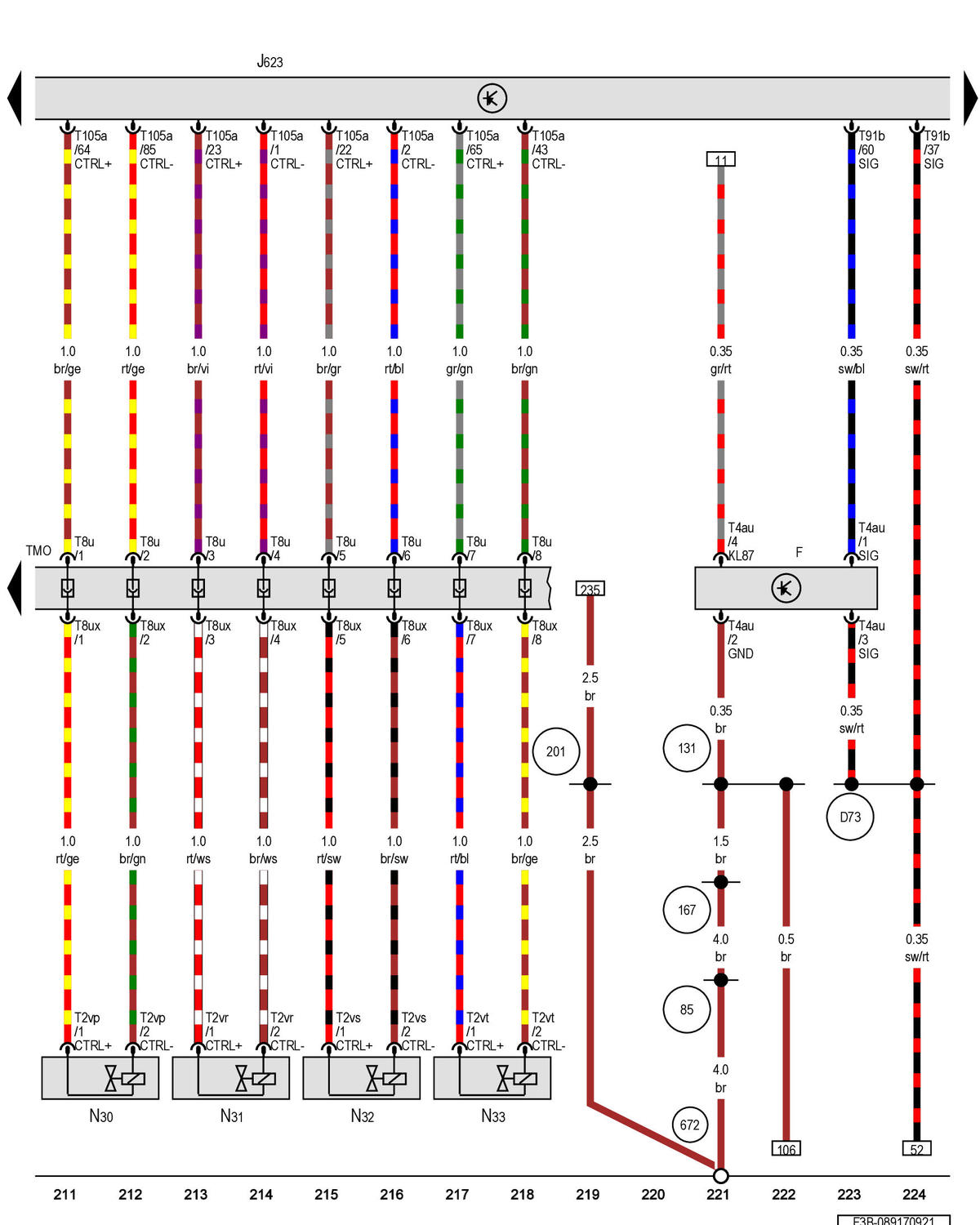

Brake Lamp Switch, Engine/Motor Control Module, Cylinder 1 Fuel Injector, Cylinder 2 Fuel Injector, Cylinder 3 Fuel Injector, Cylinder 4 Fuel Injector

Courtesy of AUDI OF AMERICA, LLC

F

Brake Lamp Switch Type:BT, Slpdok:, Aim:BTF

J623

Engine/Motor Control Module Type:BT, Slpdok:, Aim:BTJ623

N30

Cylinder 1 Fuel Injector Type:BT, Slpdok:, Aim:BTN30

N31

Cylinder 2 Fuel Injector Type:BT, Slpdok:, Aim:BTN31

N32

Cylinder 3 Fuel Injector Type:BT, Slpdok:, Aim:BTN32

N33

Cylinder 4 Fuel Injector Type:BT, Slpdok:, Aim:BTN33

T2vp

2-Pin Connector, Black Type:VA, Slpdok:, Aim:VAT2vp

T2vr

2-Pin Connector, Black Type:VA, Slpdok:, Aim:VAT2vr

T2vs

2-Pin Connector, Black Type:VA, Slpdok:, Aim:VAT2vs

T2vt

2-Pin Connector, Black Type:VA, Slpdok:, Aim:VAT2vt

T4au

4-Pin Connector, Black Type:VA, Slpdok:, Aim:VAT4au

T8u

8-Pin Connector, Black Type:BT, Slpdok:, Aim:BTT8u Type:VA, Slpdok:, Aim:VAT8u

T8ux

8-Pin Connector, Black Type:BT, Slpdok:, Aim:BTT8ux Type:VA, Slpdok:, Aim:VAT8ux

T91b

91-Pin Connector, Black Type:VA, Slpdok:, Aim:VAT91b

T105a

105-Pin Connector, Black Type:VA, Slpdok:, Aim:VAT105a

TMO

Coupling Point on Engine, Top

85

Ground Connection 1 (in Engine/Motor Compartment Wiring Harness)

131

Ground Connection 2 (in Engine/Motor Compartment Wiring Harness)

167

Ground Connection 4 (in Engine/Motor Compartment Wiring Harness)

201

Ground Connection 5 (in Engine/Motor Compartment Wiring Harness)

672

Ground Connection 2 on Left Front Longitudinal Member Type:VB, Slpdok:, Aim:VB672

D73

Positive Connection (54) (in Engine/Motor Compartment Wiring Harness)
