Starter, Removing And Installing, 1.4L TFSI And Dual Clutch Transmission: Removing
-- Disconnect the ground cable from the battery when the ignition is switched off. Refer to BATTERY, DISCONNECTING AND CONNECTING .

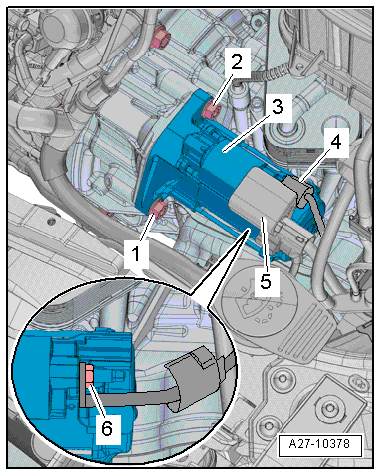

-- Disconnect the connector -4- by sliding the retainer toward the rear and pressing the release downward.
-- Remove the cap -5-.
-- Remove the 30/B+ terminal wire -6- from the starter -3-.
-- Remove the bolts -1 and 2- and remove the starter upward.
