Battery Fan 1 -V457-, REMOVING AND INSTALLING, 0K4: Removing

-- Remove the luggage compartment floor.

-- Remove the vehicle tool kit storage compartment. Refer to OVERVIEW - LUGGAGE COMPARTMENT FLOOR .

-- Lift the tab -4- and push the air duct -3- to the left side and remove it upward, at the same time free up the exhaust on the air ducts on the protective housing -1-, on the connection from the voltage Converter -2- and on the air duct -5-.

Courtesy of AUDI OF AMERICA, LLC

-- Push the air duct -3- to the right side and remove it upward, at the same time free up the air ducts on the protective housing -1- and on the connection -2- of the fan.

Courtesy of AUDI OF AMERICA, LLC

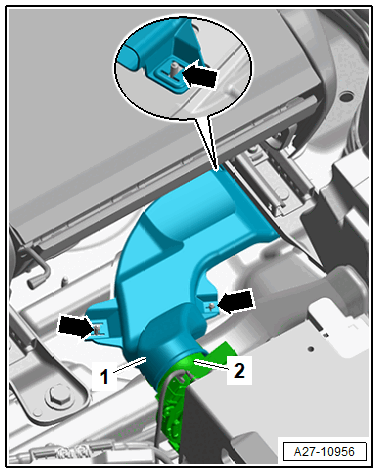

-- Remove the air duct -1- from the threaded pin -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the air duct from the connection and guide it out.

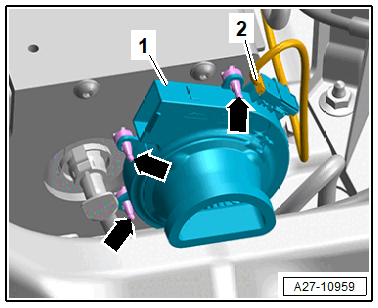

-- Disconnect the connector -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Loosen and remove the Battery Fan 1 -V457- -1- from the rubber bushing -arrows-.
