Component Location Overview - Main Fuse Panel

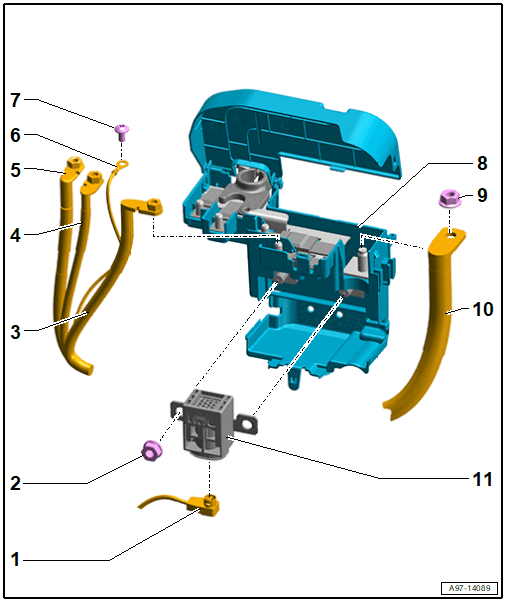

Fig 1: Exploded View Of Main Fuse Panel

Courtesy of AUDI OF AMERICA, LLC

1. Connector
   • For Battery Interrupt Igniter -N253-.
2. Nut
   • Replace after removing
   • Tightening specification. Refer to OVERVIEW - BATTERY INTERRUPT IGNITER .
   • Quantity: 2
3. Wire
   • Tightening specification: 7.5 Nm
   • Allocation. Refer to the appropriate Wiring Diagram.
4. Wire
   • Tightening specification: 7.5 Nm
   • Allocation. Refer to the appropriate Wiring Diagram.
5. Wire
   • Tightening specification: 7.5 Nm
   • Allocation. Refer to the appropriate Wiring Diagram.
6. Wire
   • Allocation. Refer to the appropriate Wiring Diagram.
7. Screw
   • 3.5 Nm
8. Main Fuse Panel
   • Only RS Q3
   • On the battery
   • Removing and Installing. Refer to MAIN FUSE PANEL ON BATTERY, REMOVING AND INSTALLING .
9. Nut
   • 15 Nm
10. Wire
    • Allocation. Refer to the appropriate Wiring Diagram.
11. Battery Interrupt Igniter -N253-
    • Removing and Installing. Refer to BATTERY INTERRUPT IGNITER, REMOVING AND INSTALLING .
