Component Location Overview - A-Pillar Relay Panel And Instrument Panel Fuse Panel, RHD (North AMERICAN Market)

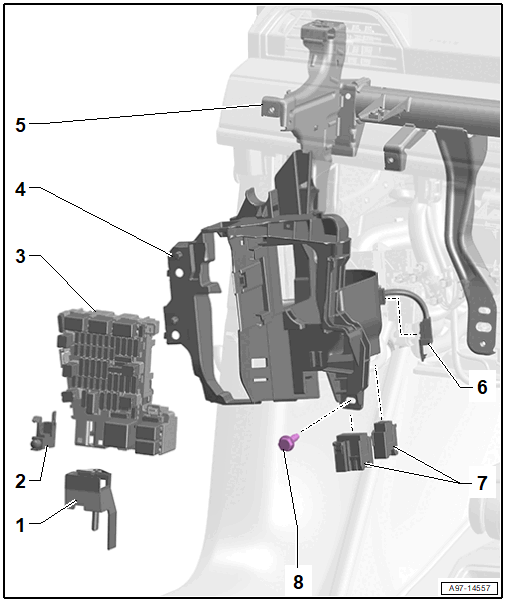

Fig 1: Exploded View Of A-Pillar Relay Panel And Instrument Panel Fuse Panel, RHD (North American Market)

Courtesy of AUDI OF AMERICA, LLC

1. Insertion Aid
2. Auxiliary Fuse Panel
3. Fuse Panel C -SC-
   • Removing and Installing. Refer to Fuse Panel C -SC- UNDER LEFT INSTRUMENT PANEL, REMOVING AND INSTALLING .
4. Bracket
   • For vehicle electrical system control module
5. Instrument Panel Crossmember
6. Auxiliary Fuse Panel
7. Bracket
   • For auxiliary fuse panel control module
   • Removing and Installing. Refer to CONTROL MODULE BRACKET, REMOVING AND INSTALLING .
8. Bolt
   • Quantity: 3
   • 4.5 Nm
