Battery Fuse Panel, Removing And Installing: Removing

-- Disconnect the ground cable from the battery when the ignition is switched off. Refer to Battery -A-, DISCONNECTING AND CONNECTING, Q3 (0K3) .

-- Remove the luggage compartment left trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

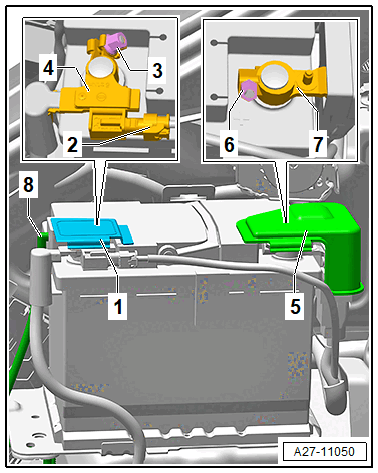

-- Remove the cover -5- over the battery positive terminal.

Courtesy of AUDI OF AMERICA, LLC

-- Turn the nut -6- a few turns and remove the battery positive cable terminal -7- from the battery positive terminal.

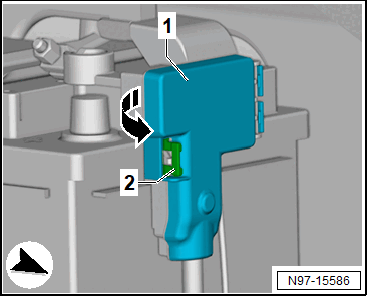

-- Release the locking tab -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Open the housing cover -1- in the direction of -arrow-.

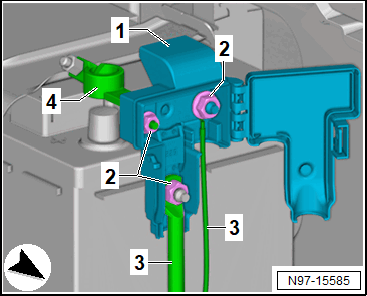

-- Remove the nuts -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the wires -3-.

-- Remove the battery terminal clamp for the positive terminal -4-.

-- Remove the fuse panel -1-.
