Left A-Pillar Connector Station, Removing And Installing: Removing

-- Remove the A-pillar lower trim panel. Refer to OVERVIEW - A-PILLAR TRIM PANEL .

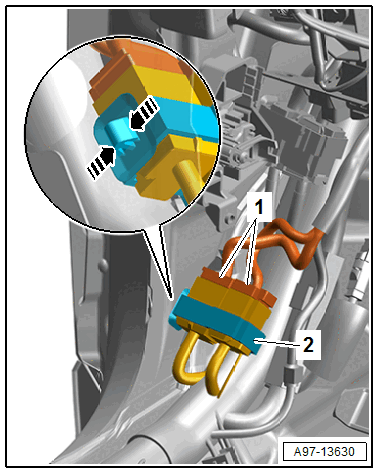

-- Release the retainers in direction of -arrows- and disengage the connector station -2- at the A-pillar.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connectors -1-.

-- Release the retainer -3- in direction of -arrow- and push the connector terminal -2- out of the bracket -1-.

Courtesy of AUDI OF AMERICA, LLC
