Trailing Arm, Servicing: Notes

Special tools and workshop equipment required

• Bearing Installer - Wheel Bearing: 3345
  Fig 1: Bearing Installer - Wheel Bearing

  Courtesy of AUDI OF AMERICA, LLC
• Bearing Installer - Control Arm: 3346

  Courtesy of AUDI OF AMERICA, LLC

• Press Plate: VW402
  Fig 2: Press Plate VW402

  Courtesy of AUDI OF AMERICA, LLC
• Press Piece - Multiple Use: VW412
  Fig 3: Identifying Press Piece - Multiple Use VW412

  Courtesy of AUDI OF AMERICA, LLC
• Press Piece - Trailing Arm Bushing: T10496

  Courtesy of AUDI OF AMERICA, LLC

Procedure

Courtesy of AUDI OF AMERICA, LLC

-- Remove the trailing arm with the mounting bracket. Refer to TRAILING ARM WITH MOUNTING BRACKET, REMOVING AND INSTALLING .

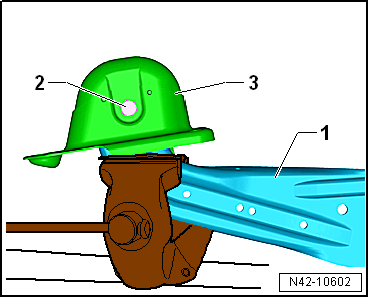

-- Clamp the trailing arm -1- in the vise with protective jaws.

-- Remove the bolt -2- and remove the mounting bracket -3-.

Bonded Rubber Bushing, Pressing Out

Courtesy of AUDI OF AMERICA, LLC

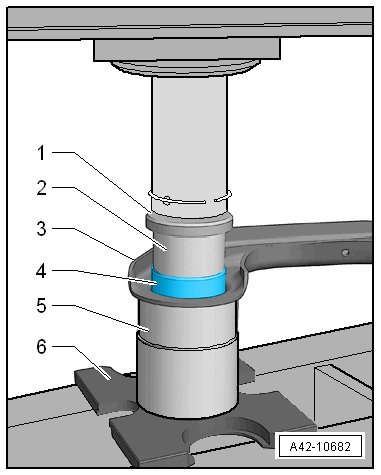

-- Attach the tools:

1. Press Piece - Multiple Use: VW412
2. Pipe : 3346/1
3. Trailing Arm
4. Bonded Rubber Bushing
5. Bearing Installer - Wheel Bearing: 3345
6. Press Plate: VW401

-- Press out the bonded rubber bushing.

Bonded Rubber Bushing, Pressing In

Courtesy of AUDI OF AMERICA, LLC

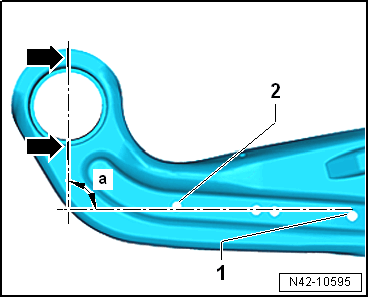

-- Mark the position of the bonded rubber bushing on the trailing arm with a right angle -a- = 90°.

-- Place the outer edge of the right angle on the upper -1- and lower radius -2- of the hole.

-- Make a mark over and under the bushing on the trailing arm -arrows-.
