Component Location Overview - Rear Axle

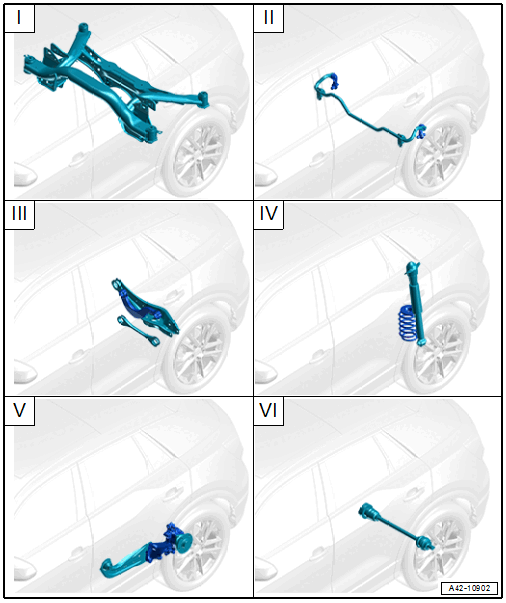

GWWA42-10902Courtesy of AUDI OF AMERICA, LLC
  1. I -

    Refer to SUBFRAME

  2. II -

    Refer to STABILIZER BAR

  3. III -

    Refer to CONTROL ARM, TIE ROD

  4. IV -

    Refer to SUSPENSION STRUT, SHOCK ABSORBER, SPRING

  5. V -

    Refer to WHEEL BEARING AND TRAILING ARM

  6. VI -

    Refer to DRIVE AXLE
