Bonded Rubber Bushing, Lubricating:

Courtesy of AUDI OF AMERICA, LLC

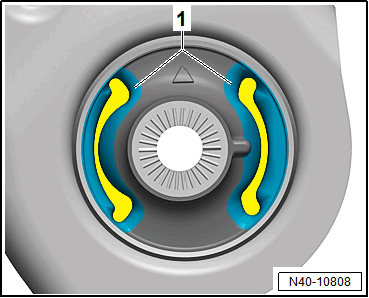

• The kidney-shaped area -1- of the bonded rubber bushing must be lubricated.

-- Apply the Grease: G 052 150 A2  evenly from above with a brush.

• The contact surfaces to the control arm must not come in contact with grease.

Required quantity of grease

Courtesy of AUDI OF AMERICA, LLC

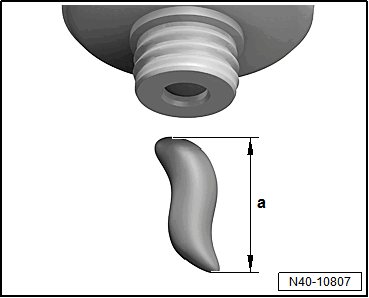

• For both kidney-shaped areas apply a fat thread -a- approximately 10 mm long.

-- Apply half the quantity of grease approximately 5 mm in each kidney-shaped area.
