Overview - Drive Axle, With Inner CV Joint Without Cover

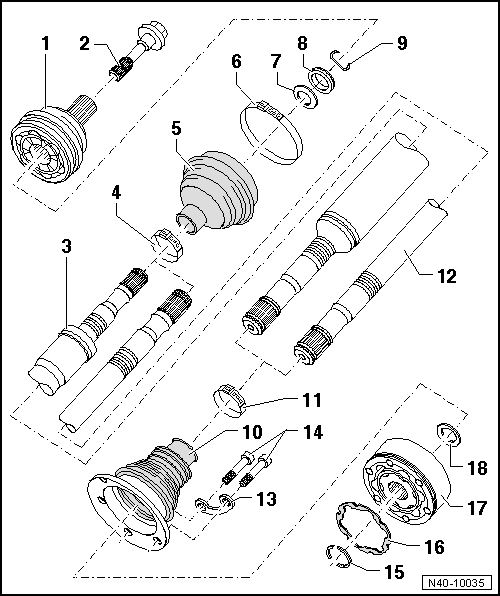

Fig 1: Exploded View Of Drive Axle, With Inner CV Joint Without Cover

Courtesy of AUDI OF AMERICA, LLC

1. Outer CV Joint
   • Only replace completely
   • Removing. Refer to Figure.
   • Installing. Refer to Figure.
   • Check using the Vehicle Diagnostic Tester Refer to OUTER CV JOINT, CHECKING .
2. Bolt
   • Replace
   • Loosening and tightening. Refer to DRIVE AXLE THREADED CONNECTION, LOOSENING AND TIGHTENING
   • Clean the threads in the CV joint with a thread tap before installing.
   • : WHT.005.437  / black = 200 Nm +180° additional turn
   • : WHT.005.437.A  / silver = 200 Nm + 90° additional turn
3. Right Drive Axle
4. Clamp
   • Replace after removing
   • Tensioning. Refer to Figure.
5. Outer CV Joint CV Boot
   • Check for tears and scuffing
6. Clamp
   • Replace after removing
   • Tensioning. Refer to Figure.
7. Plate Spring
   • Allocation. Refer to the Parts Information.
   • Installation position. Refer to Figure.
8. Thrust Ring
   • Allocation. Refer to the Parts Information.
   • Installation position. Refer to Figure.
9. Circlip
   • Replace after removing
   • Insert in shaft groove
10. Inner CV Joint CV Boot
    • Without vent hole
    • Check for tears and scuffing
    • Drive off CV joint using a drift
    • Coat the sealing surface with : D 454 300 A2  before installing it on the CV joint
11. Clamp
    • Replace after removing
    • Tensioning. Refer to Figure.
12. Left Drive Axle
13. Backing Plate
14. Bolt
    • Replace after removing
    • Tightening Specifications:
      • Pre-tightening: 10 Nm diagonally
      • Final tightening specification 40 Nm diagonally
15. Circlip
    • Replace after removing
    • Removing and installing with Circlip Pliers: VW 161A
16. Seal
    • The adhesive surface on CV joint must not have any grease or oil on it.
17. Inner CV Joint
    • Only replace completely
    • Removing. Refer to Figure.
    • Installing. Refer to Figure.
    • Check using the Vehicle Diagnostic Tester Refer to OUTER CV JOINT, CHECKING .
18. Plate Spring
    • Installation position. Refer to Figure.

Grease quantity and type

• Grease joint again when replacing CV boot.
• Pay attention to the grease type for the outer and inner joint. Refer to the Parts Information.
