Component Location Overview - Drain And Check Plugs

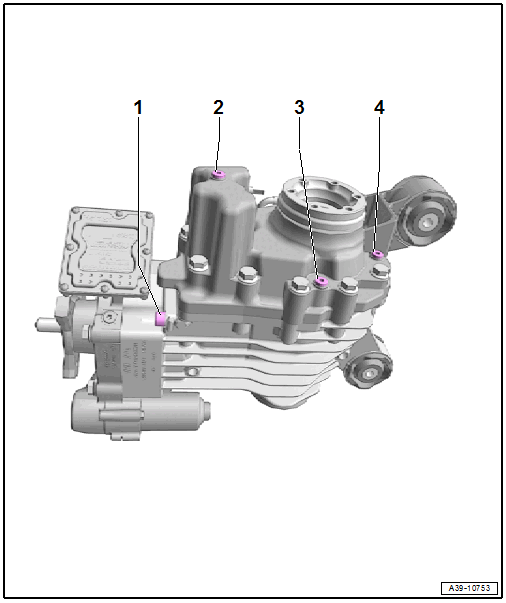

Fig 1: Drain And Check Plugs Component Location

Courtesy of AUDI OF AMERICA, LLC

1. AWD Oil Drain Plug
   • 32 Nm
   • Always replace
2. AWD Oil Filler Plug
   • 15 Nm
   • Always replace
3. Gear Oil Drain Plug
   • 19 Nm
   • Always replace
4. Oil Filler Plug for Gear Oil
   • 19 Nm
   • Always replace
